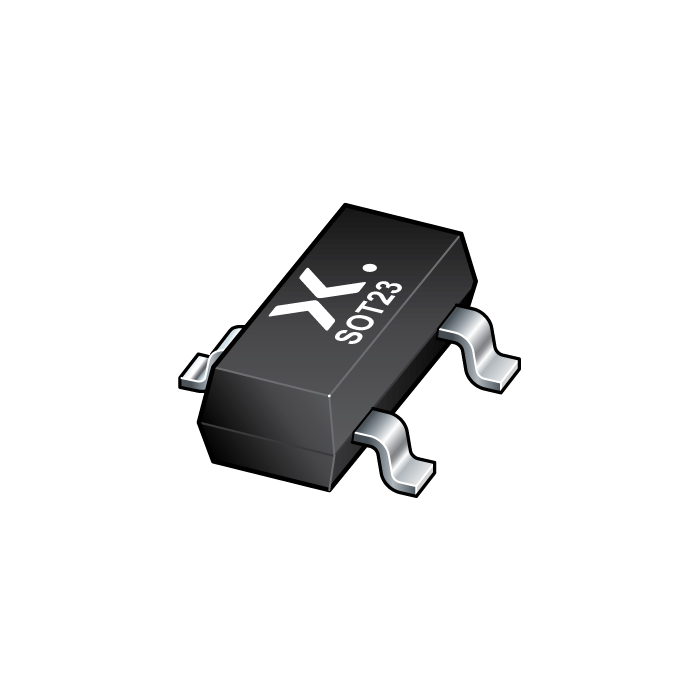

The image is for reference only
Please refer to the product specifications
-
SKU:
PESD2IVN24-TR
-
Date Code:
2350+
-
Short Description:
T - ESD protection for In-vehicle networks
-
Description:
ESD protection device in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package designed to protect two automotive In-vehicle network bus lines from the damage caused by ElectroStatic discharge (ESD) and other transients.
- Datasheet:
Features
Reverse stand-off voltage: VRWM = 24 V
Low clamping voltage: VCL= 33 V at IPP = 3.5 A
Typ. diode capacitance matching: ∆Cd/Cd = 0.1 %
ESD protection up to 30 kV (IEC 61000-4-2)
ESD protection up to 30 kV (ISO 10605; C = 330 pF, R = 330 Ω)
ISO 7637-3: Pulse a: VS = -150 V / Pulse b: VS = +100 V
Ultra low leakage current: IRM < 1 nA
Qualified according to AEC-Q101 / Automotive grade
Applications
ESD protection for In-vehicle network lines in automotive environments
CAN
LIN
FlexRay
SENT
