SZMM5Z series

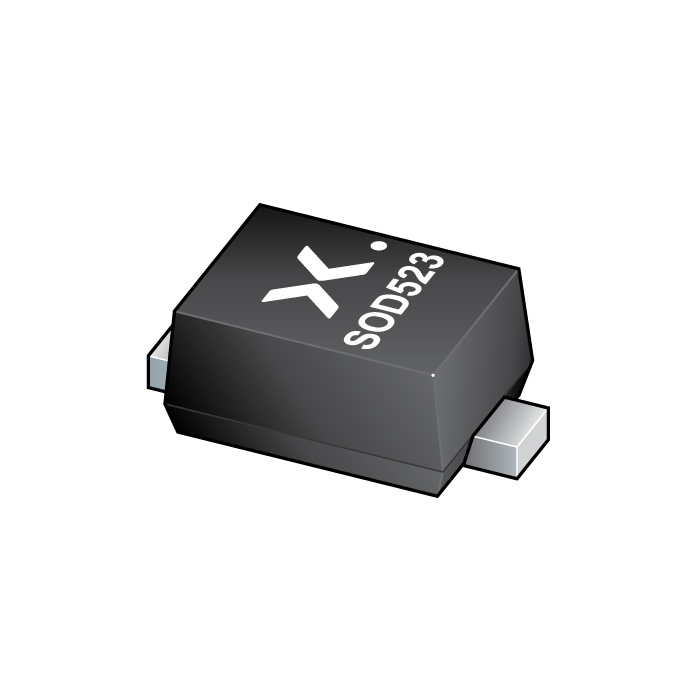

main product photo

The image is for reference only

Please refer to the product specifications

SZMM5Z series
  • SKU:
    SZMM5Z22VT5GF
  • Short Description:
      Voltage regulator diodes
  • Description:


    General-purpose Zener diodes in an SOD523 (SC-79) ultra small flat lead Surface-Mounted Device (SMD) plastic package.

  • Datasheet:
    Download the Datasheet
Stock: 20000
Qty:
Price: $0.0043
Total: $0.0043
Price
Qty Price Total price
1 $0.0043 $0.0043
500 $0.0039 $1.9500
1000 $0.0037 $3.7000
3000 $0.0035 $10.5000

Features

  • Non-repetitive peak reverse power disspation: ≤ 40 W

  • Total power dissipation: ≤ 300 mW

  • Tolerance series: ± 2 %

  • Wide working voltage range: nominal 2.4 V to 36 V

  • Low differential resistance

  • AEC-Q101 qualified

Applications

  • General regulation functions

Datasheet
Download the Datasheet
