PMEG10020ELR

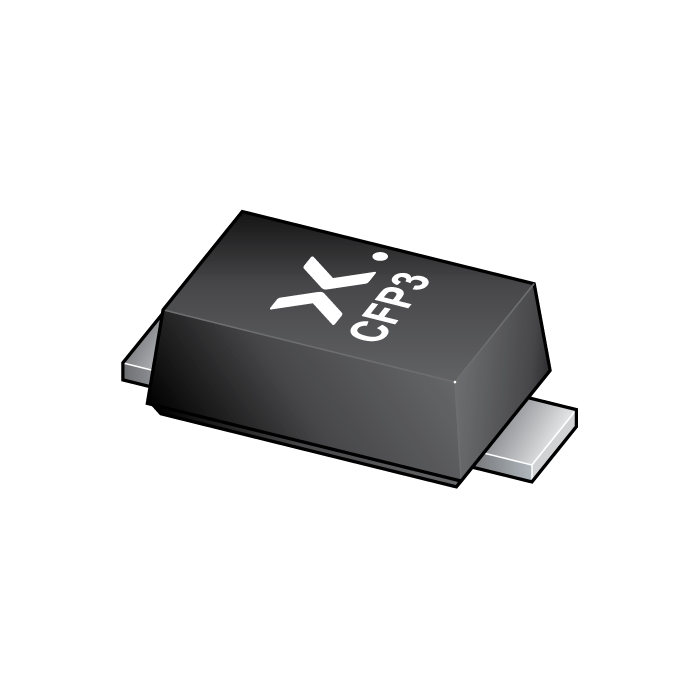

The image is for reference only
Please refer to the product specifications
PMEG10020ELR
-
SKU:
PMEG10020ELRX
-
Short Description:
100 V, 2 A low leakage current Schottky barrier rectifier
-
Description:
Planar Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a SOD123W small and flat lead Surface-Mounted Device (SMD) plastic package.
- Datasheet:
Stock: 99999999
Features
Average forward current: IF(AV) ≤ 2 A
Reverse voltage: VR ≤ 100 V
Low forward voltage: VF = 770 mV
High power capability due to clip-bonding technology
Extremely low leakage current IR = 40 nA
High temperature Tj ≤ 175 °C
Applications
Low voltage rectification
High efficiency DC-to-DC conversion
Switch mode power supply
Reverse polarity protection
Low power consumption applications
