HEF4011B

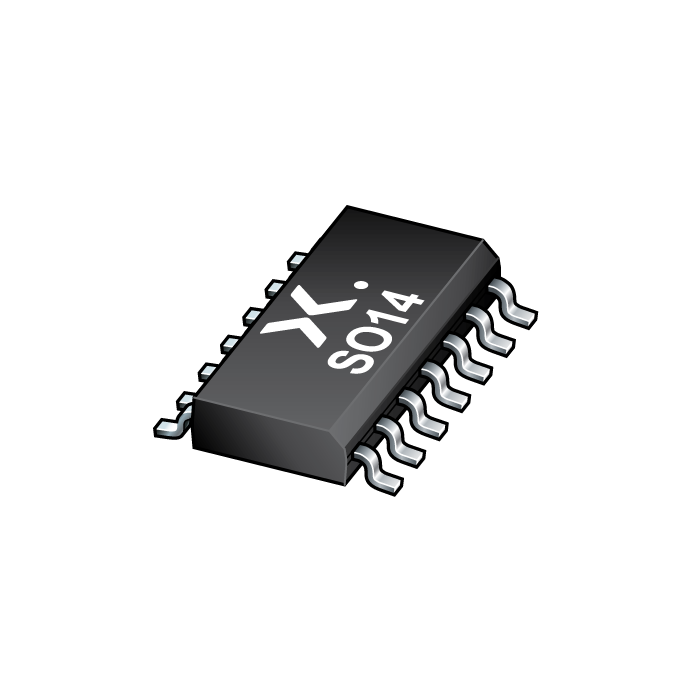

The image is for reference only
Please refer to the product specifications
HEF4011B
-
SKU:
HEF4011BT,653
-
Date Code:
2322+
-
Short Description:
Quad 2-input NAND gate
-
Description:
The HEF4011B is a quad 2-input NAND gate. The outputs are fully buffered for the highest noise immunity and pattern insensitivity to output impedance.
It operates over a recommended VDD power supply range of 3 V to 15 V referenced to VSS(usually ground). Unused inputs must be connected to VDD, VSS, or another input.
- Datasheet:
Stock: 99999999
Features
Fully static operation
5 V, 10 V, and 15 V parametric ratings
Standardized symmetrical output characteristics
Specified from -40 °C to +125 °C
Complies with JEDEC standard JESD 13-B
Inputs and outputs are protected against electrostatic effects
Applications
