HEF4001B

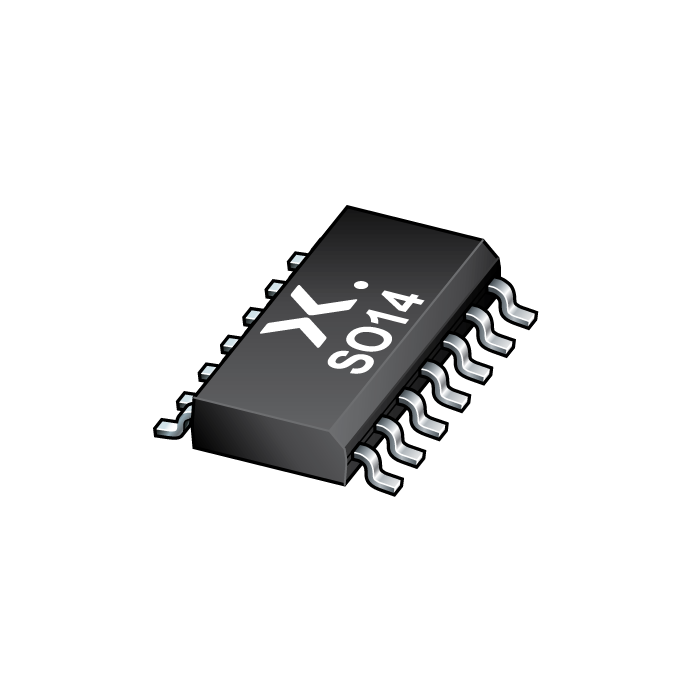

The image is for reference only
Please refer to the product specifications
HEF4001B
-
SKU:
HEF4001BT,653
-
Short Description:
Quad 2-input NOR gate
-
Description:
The HEF4001B is a quad 2-input NOR gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VDD.
- Datasheet:
Stock: 99999999
Features
Wide supply voltage range from 3.0 V to 15.0 V
CMOS low power dissipation
High noise immunity
Fully static operation
5 V, 10 V, and 15 V parametric ratings
Standardized symmetrical output characteristics
Complies with JEDEC standard JESD 13-B
- ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-B exceeds 200 V
Specified from -40 °C to +85 °C and from -40 °C to +125 °C
