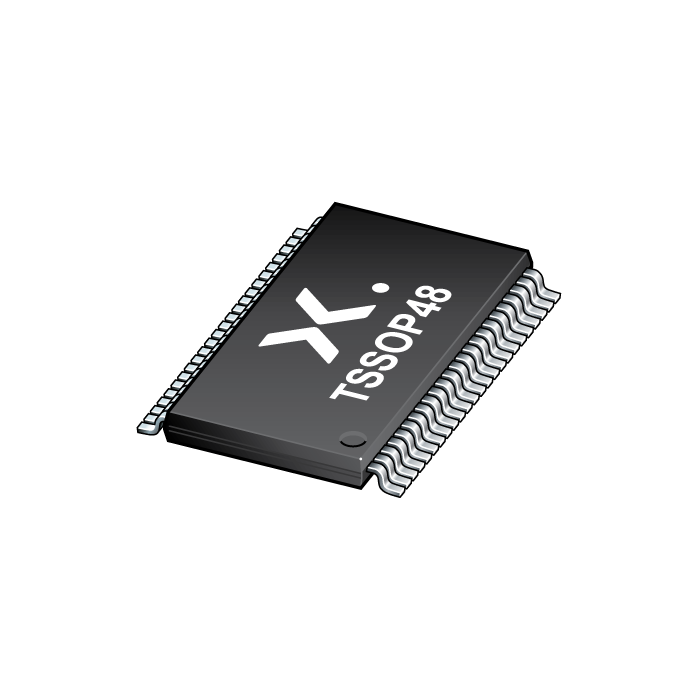

The image is for reference only
Please refer to the product specifications
-
SKU:
74LVT162244BDGG:11
-
Short Description:
3.3 V 16-bit buffer/driver with 30 Ohm termination resistors; 3-state
-
Description:
The 74LVT16244B is a 16-bit buffer/line driver with 3-state outputs. The device can be used as four 4-bit buffers, two 8-bit buffers or one 16-bit buffer. The device features four output enables (1OE, 2OE, 3OE and 4OE), each controlling four of the 3-state outputs. A HIGH on nOE causes the outputs to assume a high-impedance OFF-state. Bus hold data inputs eliminate the need for external pull-up resistors to define unused inputs
- Datasheet:
Features
16-bit bus interface
3-state buffers
Outputs include series resistance of 30 Ω making external termination resistors unnecessary
Output capability: +12 mA/–12 mA
Wide supply voltage range from 2.7 to 3.6 V
BiCMOS high speed and output drive
Direct interface with TTL levels
Overvoltage tolerant inputs to 5.5 V
Bus-hold data inputs eliminate the need for external pull-up resistors to hold unused inputs
Live insertion/extraction permitted
Power-up 3-state
No bus current loading when output is tied to 5 V bus
IOFF circuitry provides partial Power-down mode operation
Latch-up performance exceeds 500 mA per JESD 78 Class II Level B
Complies with JEDEC standard JESD8C (2.7 V to 3.6 V)
ESD protection:
HBM: JESD22-A114F exceeds 2000 V
MM: JESD22-A115-A exceeds 200 V
Specified from -40 °C to 85 °C
