74HC10

74HC10

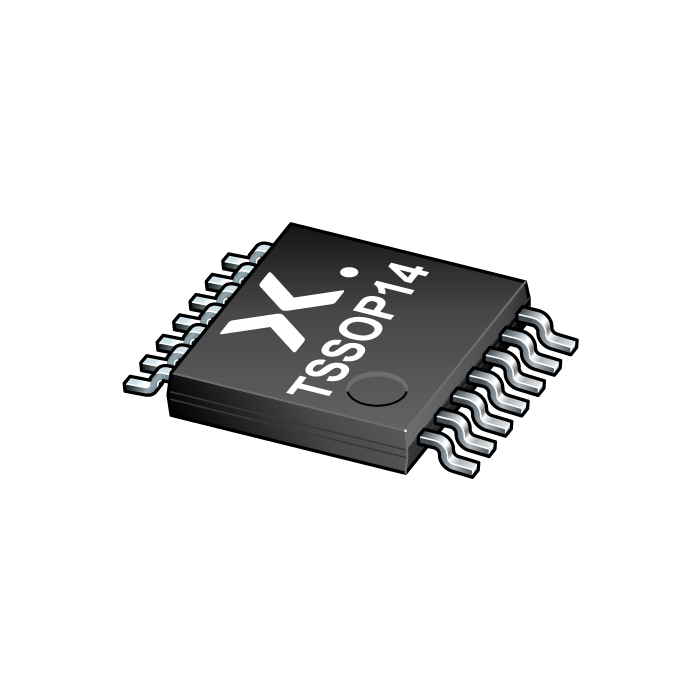

The image is for reference only

Please refer to the product specifications

74HC10

SKU:
74HCT10PW-Q100J
Short Description:
Q100; 74HCT10-Q100 - Triple 3-input NAND gate
Description:

The 74HC10-Q100; 74HCT10-Q100 is a triple 3-input NAND gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of V_CC.
This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications.
Datasheet:
Download the Datasheet

Stock: 99999999

Qty:

Price: $0.1284

Total: $0.1284

Price

Qty Price Total price: 1 $0.1284 $0.1284; 500 $0.1235 $61.7500; 1000 $0.1186 $118.6000; 3000 $0.1136 $340.8000

Automotive product qualification in accordance with AEC-Q100 (Grade 1)
- Specified from -40 °C to +85 °C and from -40 °C to +125 °C
Complies with JEDEC standard JESD7A
Input levels:
- For 74HC10-Q100: CMOS level
- For 74HCT10-Q100: TTL level
ESD protection:
- MIL-STD-883, method 3015 exceeds 2000 V
- HBM JESD22-A114F exceeds 2000 V
- MM JESD22-A115-A exceeds 200 V (C = 200 pF, R = 0 Ω)
