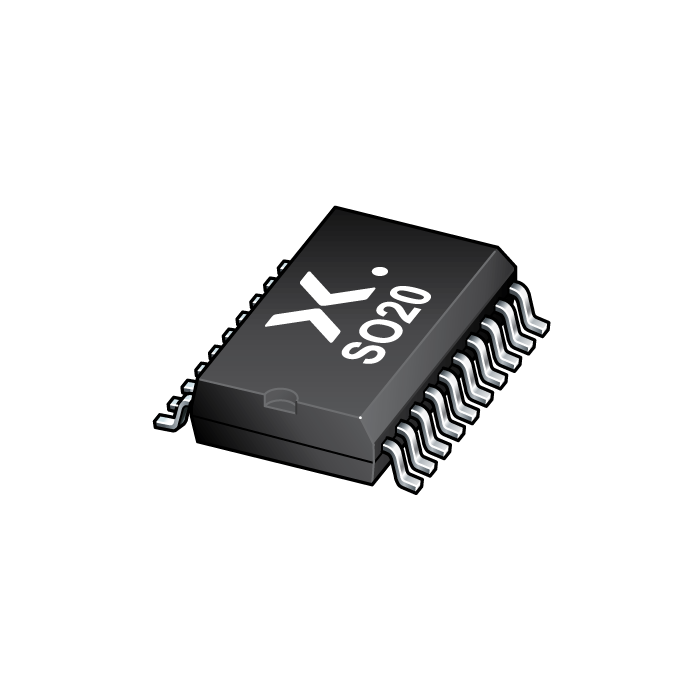

The image is for reference only
Please refer to the product specifications
-
SKU:
74HC9115D,118
-
Date Code:
2326+
-
Short Description:
Nine wide Schmitt trigger buffer; open drain outputs
-
Description:
The 74HC9115 is a 9-bit buffer with Schmitt trigger inputs and open drain outputs. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. Schmitt trigger inputs transform slowly changing input signals into sharply defined jitter-free output signals.
- Datasheet:
Features
Wide operating voltage 2.0 V to 6.0 V
Schmitt trigger action on all data inputs
CMOS low power dissipation
High noise immunity
Unlimited input rise and fall times
Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
Complies with JEDEC standards:
JESD8C (2.7 V to 3.6 V)
JESD7A (2.0 V to 6.0 V)
ESD protection:
HBM JESD22-A114-A exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
Specified from -40 °C to +85 °C and from -40 °C to +125 °C
