74HC688

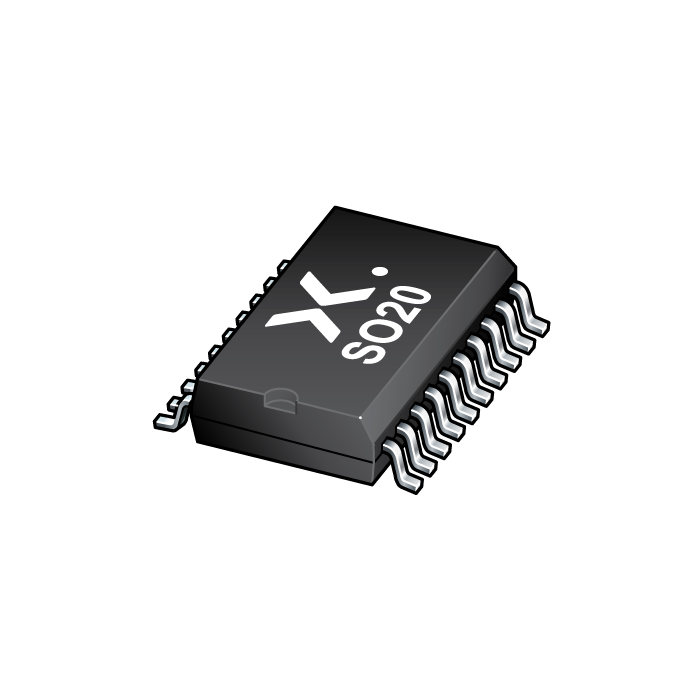

The image is for reference only
Please refer to the product specifications
74HC688
-
SKU:
74HC688D,653
-
Date Code:
2350+
-
Short Description:
8-bit magnitude comparator
-
Description:
The 74HC688 is an 8-bit magnitude comparator. It performs comparisons of two 8-bit binary or BCD words. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
- Datasheet:
Stock: 99999999
Features
Compare two 8-bit words
Wide supply voltage range from 2.0 to 6.0 V
CMOS input levels
Complies with JEDEC standard: no. 7A
ESD protection:
HBM JESD22-A114-F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
Multiple package options
Specified from -40 °C to +85 °C and from -40 °C to +125 °C
Applications
