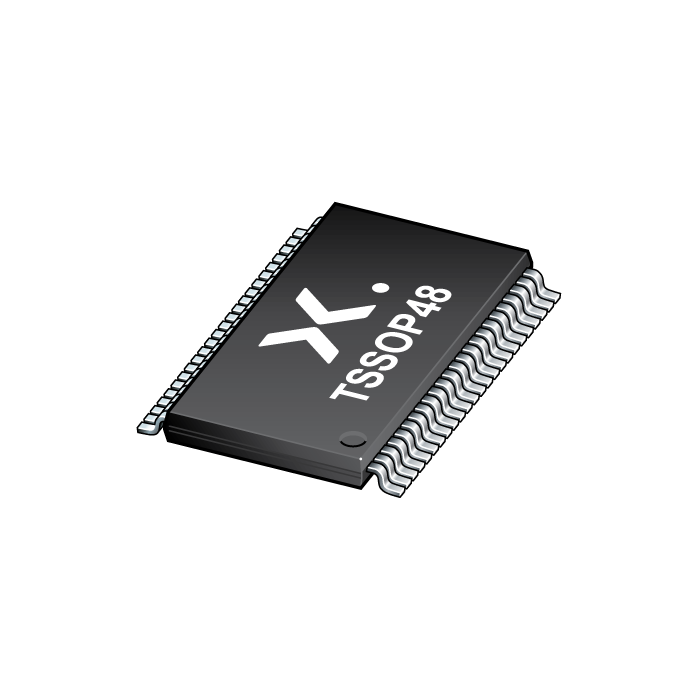

The image is for reference only
Please refer to the product specifications
-
SKU:
74ALVT16244DGG,118
-
Short Description:
16-bit buffer/line driver; 3-state
-
Description:
The 74ALVT16244 is a high-performance BiCMOS product designed for VCC operation at 2.5 V or 3.3 V with I/O compatibility up to 5 V.
This device is a 16-bit buffer and line driver featuring non-inverting 3-state bus outputs. The device can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer.
- Datasheet:
Features
16-bit bus interface
3-State buffers
5V I/O compatible
Output capability: +64 mA/–32 mA
TTL input and output switching levels
Input and output interface capability to systems at 5 V supply
Bus-hold data inputs eliminate the need for external pull-up resistors to hold unused inputs
Live insertion/extraction permitted
Power-up 3-State
No bus current loading when output is tied to 5 V bus
Latch-up protection:
JESD17: exceeds 500 mA
ESD protection:
MIL STD 883 method 3015: exceeds 2000 V
MM exceeds 200 V
