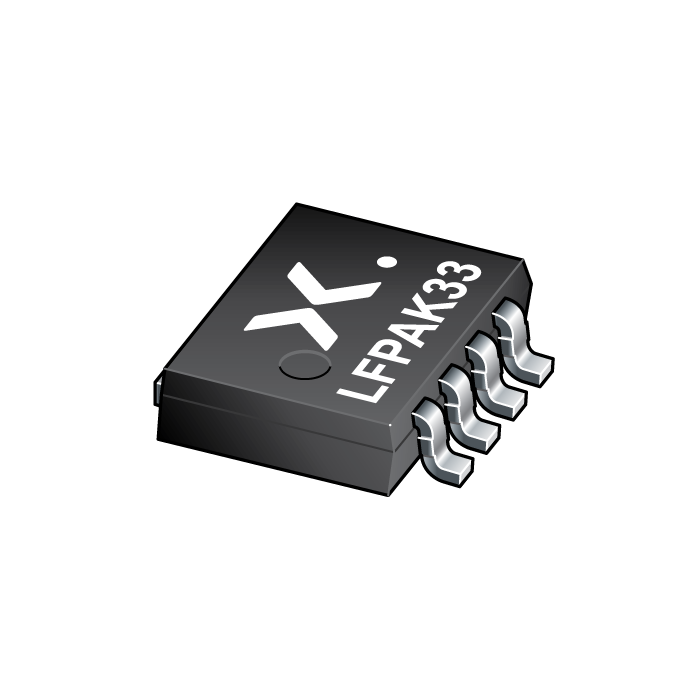

The image is for reference only
Please refer to the product specifications
-
SKU:
PSMN6R7-40MLDX
-
Date Code:
2348+
-
Short Description:
40MLD - N-channel 40 V, 6.7 mΩ, logic level MOSFET in LFPAK33 using NextPower-S3 technology
-
Description:
50 A, logic level N-channel enhancement mode MOSFET in 175 °C LFPAK33 package using advanced TrenchMOS Superjunction technology. This product has been designed and qualified for high efficiency applications operating at high switching frequencies.
- Datasheet:
Features
Avalanche rated, 100% tested
NextPower-S3 technology delivers 'superfast switching with soft body-diode recovery'
Low QRR, QG and QGD for high efficiency, especially at higher switching frequencies
Low spiking and ringing for low EMI designs
High reliability clip bond and solder die attach Mini Power SO8 package; no glue, no wire bonds, qualified to 175 °C
Exposed leads can be wave soldered; visual solder joint inspection and high quality solder joints
Low parasitic inductance and resistance
Applications
Secondary side synchronous rectification
DC-to-DC converters
Brushless DC motor drive
LED lighting
