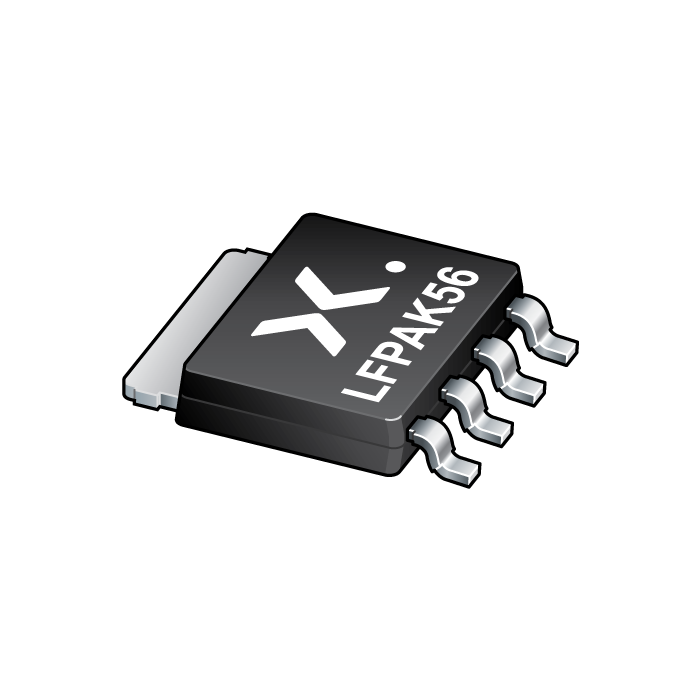

The image is for reference only
Please refer to the product specifications
-
SKU:
PSMN1R4-40YLDX
-
Short Description:
40YLD - N-channel 40 V, 1.4 mΩ, 240 A logic level MOSFET in LFPAK56 using NextPower-S3 technology
-
Description:
240 Amp, logic level gate drive N-channel enhancement mode MOSFET in 175 °C LFPAK56 package using advanced TrenchMOS Superjunction technology. This product has been designed and qualified for high performance power switching applications.
- Datasheet:
Features
240 A capability
Avalanche rated, 100% tested at IAS = 190 A
NextPower-S3 technology delivers 'superfast switching with soft recovery'
Low QRR, QG and QGD for high system efficiency and low EMI designs
Schottky-Plus body-diode, gives soft switching without the associated high IDSS leakage
Optimised for 4.5 V gate drive utilising NextPower-S3 Superjunction technology
High reliability LFPAK (Power SO8) package, copper-clip, solder die attach and qualifiedto175°C
Exposed leads can be wave soldered, visual solder joint inspection and high quality solder joints
Low parasitic inductance and resistance
Applications
Synchronous rectification
DC-to-DC converters
High performance & high efficiency server power supply
Motor control
Power OR-ing
