PMXB65ENE

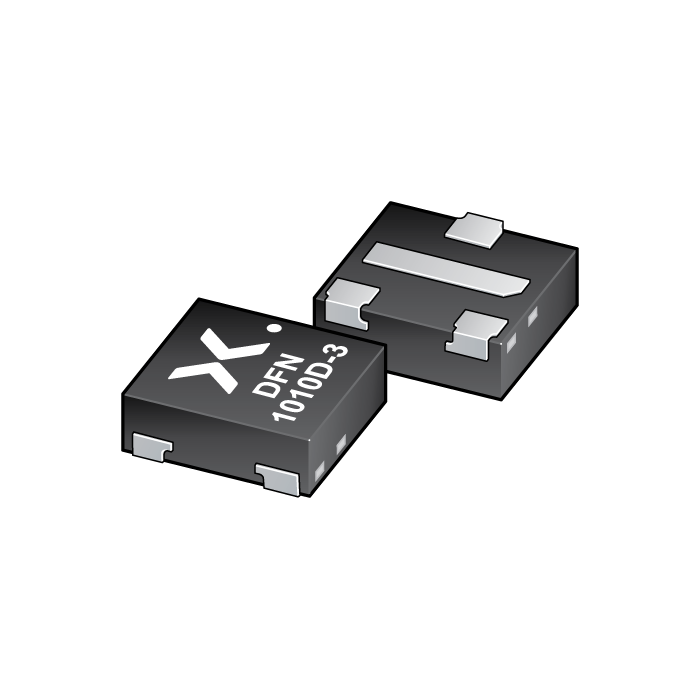

main product photo

The image is for reference only

Please refer to the product specifications

PMXB65ENE
  • SKU:
    PMXB65ENEZ
  • Date Code:
    2510+
  • Short Description:
      30 V, N-channel Trench MOSFET
  • Description:


    N-channel enhancement mode Field-Effect Transistor (FET) in a leadless ultra small DFN1010D-3 (SOT1215) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.

  • Datasheet:
    Download the Datasheet
Stock: 605000
Qty:
Price: $0.0516
Total: $0.0516
Price
Qty Price Total price
1 $0.0516 $0.0516
500 $0.0469 $23.4500
1000 $0.0447 $44.7000
3000 $0.0426 $127.8000

Features

  • Trench MOSFET technology

  • Leadless ultra small and thin SMD plastic package: 1.1 × 1.0 × 0.37 mm

  • Exposed drain pad for excellent thermal conduction

  • ElectroStatic Discharge (ESD) protection 1 kV

  • Very low Drain-Source on-state resistance RDSon = 44 mΩ

Applications

  • Low-side load switch and charging switch for portable devices

  • Power management in battery-driven portables

  • LED driver

  • DC-to-DC converters

Datasheet
Download the Datasheet
