PMXB43UNE
The image is for reference only
Please refer to the product specifications
PMXB43UNE
-
SKU:
PMXB43UNEZ
-
Date Code:
2350+
-
Short Description:
20 V, N-channel Trench MOSFET
-
Description:

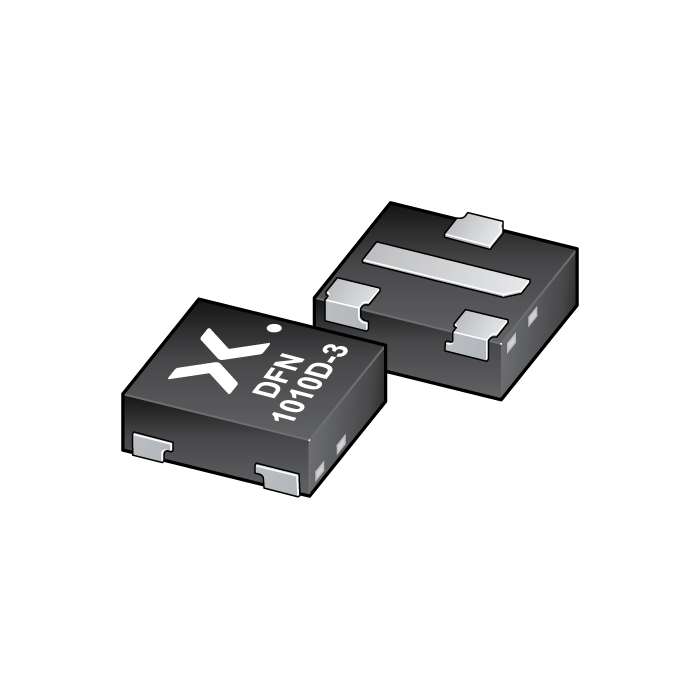

N-channel enhancement mode Field-Effect Transistor (FET) in a leadless ultra small DFN1010D-3 (SOT1215) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.
- Datasheet:
Stock: 30000
Features
Trench MOSFET technology
Leadless ultra small and thin SMD plastic package: 1.1 × 1.0 × 0.37 mm
Exposed drain pad for excellent thermal conduction
Very low Drain-Source on-state resistance RDSon = 42 mΩ
1 kV ESD protected
Applications
Low-side load switch and charging switch for portable devices
Power management in battery-driven portables
LED driver
DC-to-DC converters
Datasheet
