PMXB40UNE

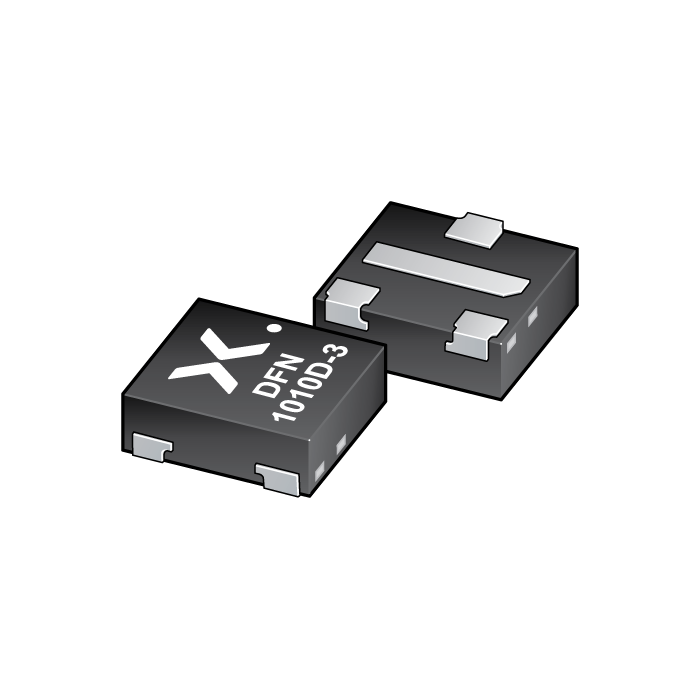

main product photo

The image is for reference only

Please refer to the product specifications

PMXB40UNE
  • SKU:
    PMXB40UNEZ
  • Short Description:
      12 V, N-channel Trench MOSFET
  • Description:


    N-channel enhancement mode Field-Effect Transistor (FET) in a leadless ultra small DFN1010D-3 (SOT1215) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.

  • Datasheet:
    Download the Datasheet
Stock: 2095000
Qty:
Price: $0.0464
Total: $0.0464
Price
Qty Price Total price
1 $0.0464 $0.0464
500 $0.0422 $21.1000
1000 $0.0402 $40.2000
3000 $0.0383 $114.9000

Features

  • Trench MOSFET technology

  • Leadless ultra small and thin SMD plastic package: 1.1 × 1.0 × 0.37 mm

  • Exposed drain pad for excellent thermal conduction

  • ElectroStatic Discharge (ESD) protection 1 kV

  • Very low Drain-Source on-state resistance RDSon = 34 mΩ

  • Very low threshold voltage of 0.65 V for portable applications

Applications

  • Low-side load switch and charging switch for portable devices

  • Power management in battery-driven portables

  • LED driver

  • DC-to-DC converters

Datasheet
Download the Datasheet
