PMPB29XNE

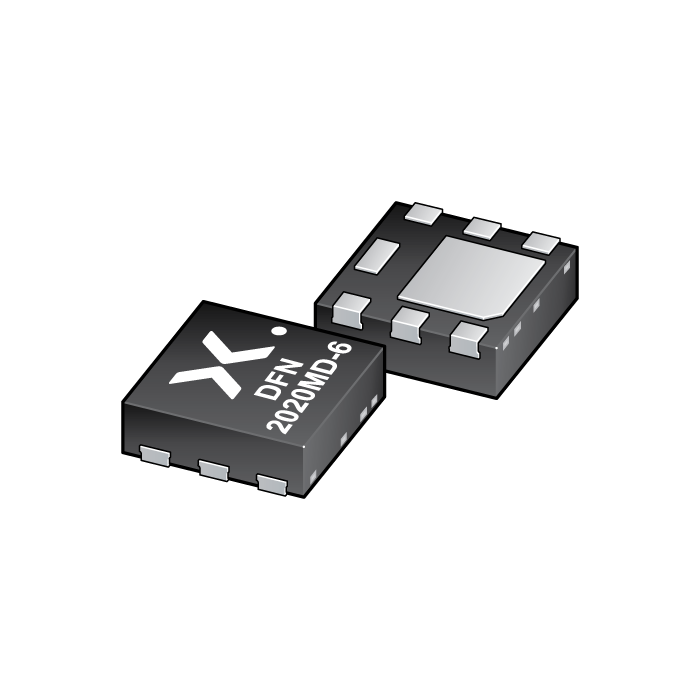

The image is for reference only
Please refer to the product specifications
PMPB29XNE
-
SKU:
PMPB29XNE,115
-
Date Code:
2349+
-
Short Description:
30 V, single N-channel Trench MOSFET
-
Description:
N-channel enhancement mode Field-Effect Transistor (FET) in a leadless medium power DFN2020MD-6 (SOT1220) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.
- Datasheet:
Stock: 81000
Features
1 kV ESD protection
Small and leadless ultra thin SMD plastic package: 2 x 2 x 0.65 mm
Exposed drain pad for excellent thermal conduction
Tin-plated, 100% solderable side pads for optical solder inspection
Applications
Charging switch for portable devices
DC-to-DC converters
Power management in battery-driven portables
Hard disk and computing power management
