PMEG4010CEJ
The image is for reference only
Please refer to the product specifications
PMEG4010CEJ
-
SKU:
PMEG4010CEJ-QX
-
Date Code:
2511+
-
Short Description:
Q - 40 V, 1 A very low VF MEGA Schottky barrier rectifier
-
Description:

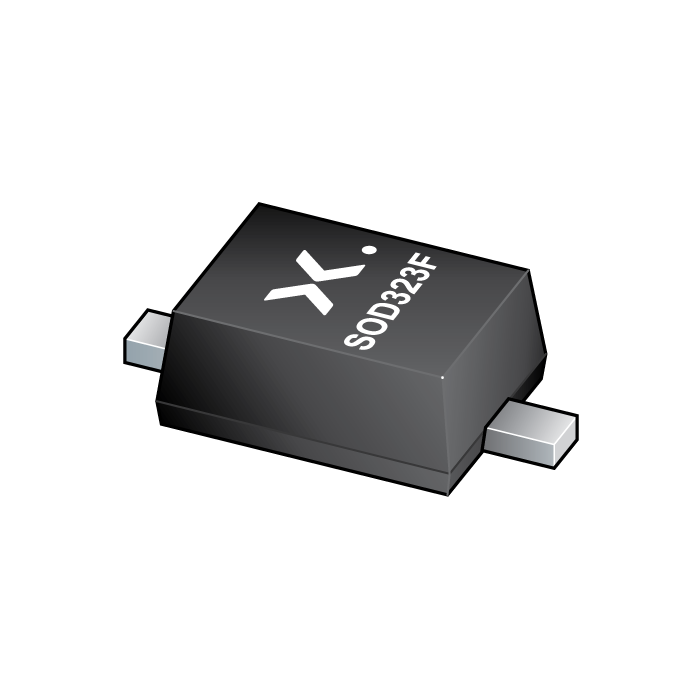

Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifiers with an integrated guard ring for stress protection, encapsulated in a small and flat lead SOD323F (SC-90) Surface-Mounted Device (SMD) plastic package.
- Datasheet:
Stock: 95829999
Features
Forward current: IF ≤ 1 A
Reverse voltage: VR ≤ 40 V
Very low forward voltage
Small and flat lead SMD plastic package
Qualified according to AEC-Q101 and recommended for use in automotive applications
Applications
Low voltage rectification
High efficiency DC-to-DC conversion
Switch mode power supply
Reverse polarity protection
Low power consumption applications
Datasheet
