PMDPB55XP

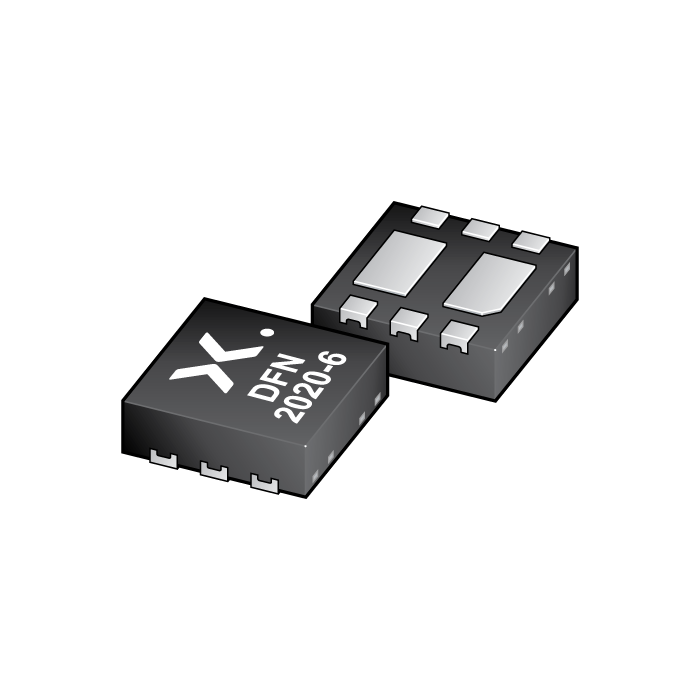

main product photo

The image is for reference only

Please refer to the product specifications

PMDPB55XP
  • SKU:
    PMDPB55XP,115
  • Short Description:
      20 V, dual P-channel Trench MOSFET
  • Description:


    Dual P-channel enhancement mode Field-Effect Transistor (FET) in a small and leadless ultra thin DFN2020-6 (SOT1118) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.

  • Datasheet:
    Download the Datasheet
Stock: 99999999
Qty:
Price: $0.1444
Total: $0.1444
Price
Qty Price Total price
1 $0.1444 $0.1444
500 $0.1313 $65.6500
1000 $0.125 $125.0000
3000 $0.119 $357.0000

Features

  • Very fast switching

  • Trench MOSFET technology

  • Small and leadless ultra thin SMD plastic package: 2 x 2 x 0.65 mm

  • Exposed drain pad for excellent thermal conduction

Applications

  • Charging switch for portable devices

  • DC/DC converters

  • Small brushless DC motor drive

  • Power management in battery-driven portables

  • Hard disc and computing power management

Datasheet
Download the Datasheet
