PIMN31PA

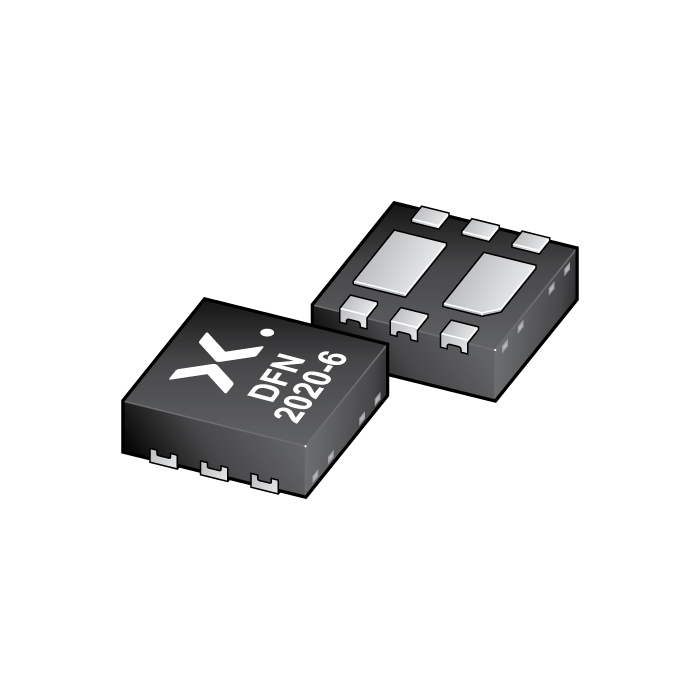

main product photo

The image is for reference only

Please refer to the product specifications

PIMN31PA
  • SKU:
    PIMN31PAX
  • Short Description:
      50 V, 500 mA NPN/NPN Resistor-Equipped double Transistor; R1 = 1 kΩ, R2 = 10 kΩ
  • Description:


    NPN/NPN Resistor-Equipped double Transistor (RET) in a medium power SOT1118 (DFN2020-6) leadless Surface-Mounted Device (SMD) plastic package.

    NPN/PNP complement: PIMC31PA

    PNP/PNP complement: PIMP31PA

  • Datasheet:
    Download the Datasheet
Stock: 138000
Qty:
Price: $0.0201
Total: $0.0201
Price
Qty Price Total price
1 $0.0201 $0.0201
500 $0.0183 $9.1500
1000 $0.0174 $17.4000
3000 $0.0165 $49.5000

Features

  • 500 mA output current capability

  • Built-in resistors

  • Simplifies circuit design

  • Reduces component count

  • Reduces pick and place costs

Applications

  • Digital applications

  • Cost-saving alternative to BC817 series in digital applications

  • Control of IC inputs

  • Switching loads

Datasheet
Download the Datasheet
