PESD5V0U5BF

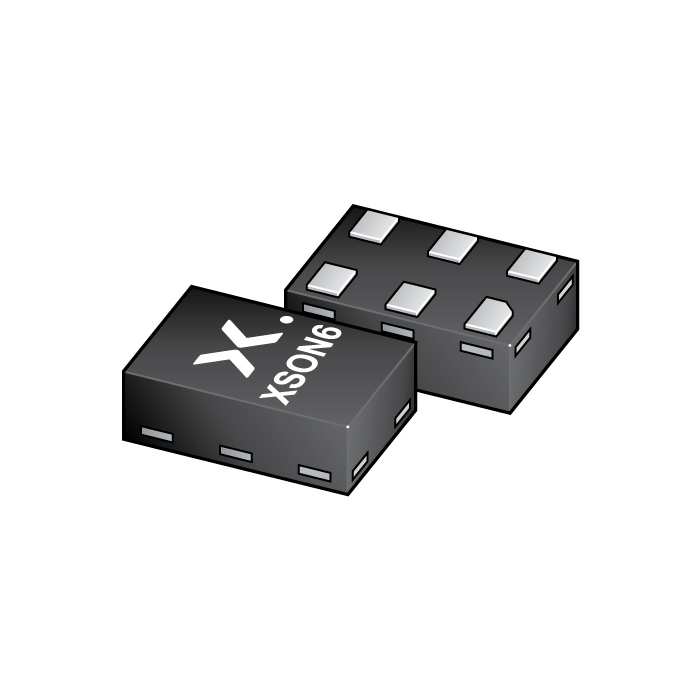

main product photo

The image is for reference only

Please refer to the product specifications

PESD5V0U5BF
  • SKU:
    PESD5V0U5BF,115
  • Short Description:
      Ultra low capacitance bidirectional fivefold ESD protection array
  • Description:


    Ultra low capacitance bidirectional fivefold ElectroStatic Discharge (ESD) protection array in a leadless ultra small XSON6 (SOT886) Surface-Mounted Device (SMD) plastic package, designed to protect up to five signal lines from the damage caused by ESD and other transients.

  • Datasheet:
    Download the Datasheet
Stock: 1800000
Qty:
Price: $1
Total: $1

Features

  • Bidirectional ESD protection of up to five lines

  • ESD protection up to 10 kV

  • Ultra low diode capacitance: Cd = 2.9 pF

  • IEC 61000-4-2; level 4 (ESD)

  • Ultra low leakage current: IRM = 5 nA

  • AEC-Q101 qualified

Applications

  • Computers and peripherals

  • Portable electronics

  • Audio and video equipment

  • Cellular handsets and accessories

  • Communication systems

Datasheet
Download the Datasheet
