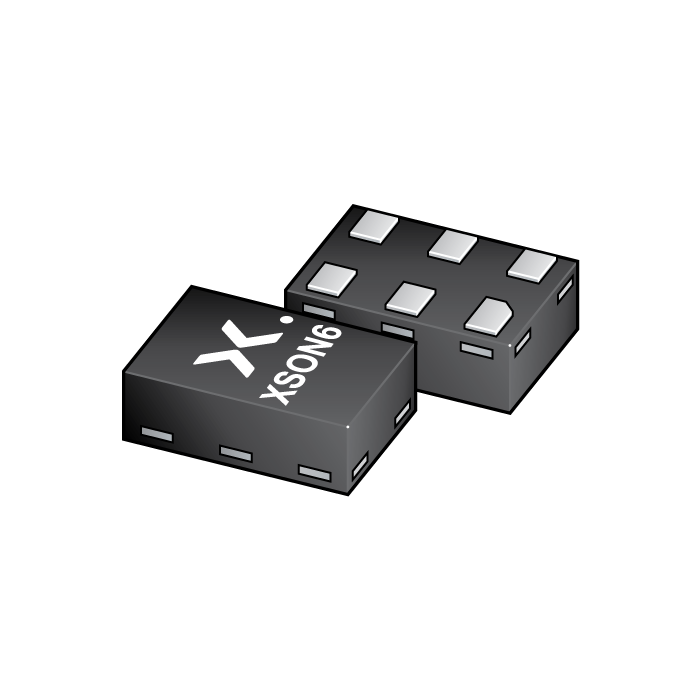

The image is for reference only
Please refer to the product specifications
-
SKU:
PESD5V0L5UF,115
-
Short Description:
Low capacitance unidirectional fivefold ESD protection diode arrays
-
Description:
Low capacitance unidirectional fivefold ElectroStatic Discharge (ESD) protection diode array in a leadless ultra small SOT886 Surface-Mounted Device (SMD) plastic package, designed to protect up to five unidirectional signal lines from the damage caused by ESD and other transients.
- Datasheet:
Features
ESD protection of up to five lines
Ultra low leakage current: IRM = 5 nA
Low diode capacitance
ESD protection up to 20 kV
Max. peak pulse power: PPP = 25 W
IEC 61000-4-2; level 4 (ESD)
Low clamping voltage: VCL = 12 V
IEC 61000-4-5 (surge); IPP = 2.5 A
Applications
Computers and peripherals
Communication systems
Audio and video equipment
Portable electronics
Cellular handsets and accessories
Subscriber Identity Module (SIM) card protection
