PESD3V3S4UF

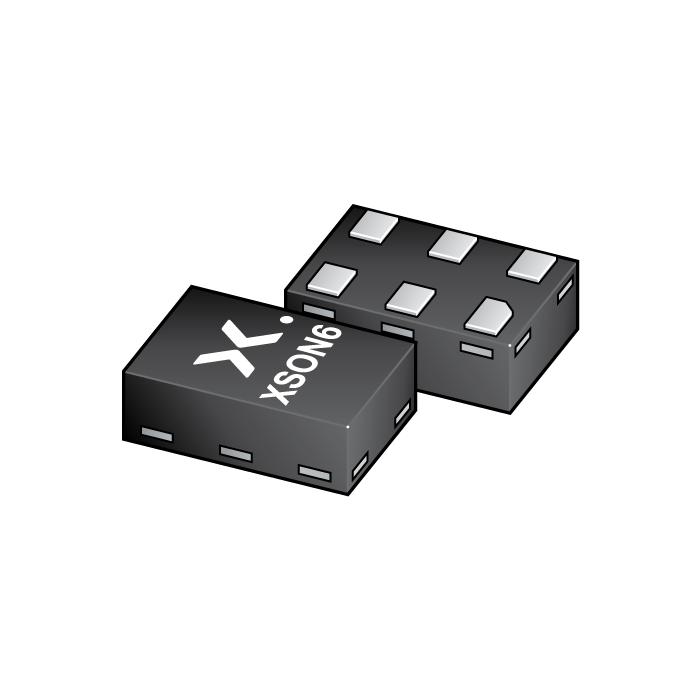

main product photo

The image is for reference only

Please refer to the product specifications

PESD3V3S4UF
  • SKU:
    PESD3V3S4UF,115
  • Short Description:
      Unidirectional quadruple ESD protection diode arrays
  • Description:


    Unidirectional quadruple ElectroStatic Discharge (ESD) protection diode arrays in a small SOT886 Surface-Mounted Device (SMD) plastic package designed to protect up to four signal lines from the damage caused by ESD and other transients.

  • Datasheet:
    Download the Datasheet
Stock: 15000
Qty:
Price: $1
Total: $1

Features

  • ESD protection of up to four lines

  • ESD protection up to 30 kV

  • Max. peak pulse power: PPP = 110 W

  • IEC 61000-4-2; level 4 (ESD)

  • Low clamping voltage: VCL = 11 V

  • IEC 61000-4-5 (surge); IPP = 10 A

  • Ultra low leakage current: IRM = 4 nA

  • AEC-Q101 qualified

Applications

  • Computers and peripherals

  • Communication systems

  • Audio and video equipment

  • Portable electronics

  • Cellular handsets and accessories

Datasheet
Download the Datasheet
