PESD18VF1BL
The image is for reference only
Please refer to the product specifications
PESD18VF1BL
-
SKU:
PESD18VF1BL-QYL
-
Short Description:
Q - Ultra low capacitance bidirectional ESD protection diode
-
Description:

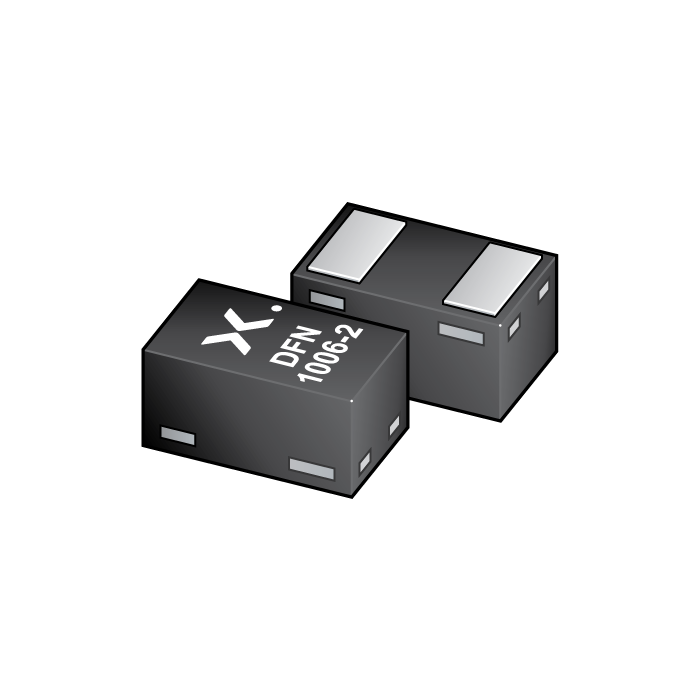

Ultra low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode in a DFN1006-2 (SOD882) leadless ultra small Surface-Mounted Device (SMD) plastic package designed to protect one signal line from the damage caused by ESD and other transients.
- Datasheet:
Stock: 10000
Features
Ultra low diode capacitance Cd = 0.35 pF
High reverse standoff voltage VRWM = 18 V
Very small voltage dependency of the capacitance
ESD protection up to ±10 kV according to IEC 61000-4-2, level 4
Qualified according to AEC-Q101 and recommended for use in automotive applications
Applications
NFC antenna protection
Protection of high-speed data lines
Datasheet
