PDTD123YT

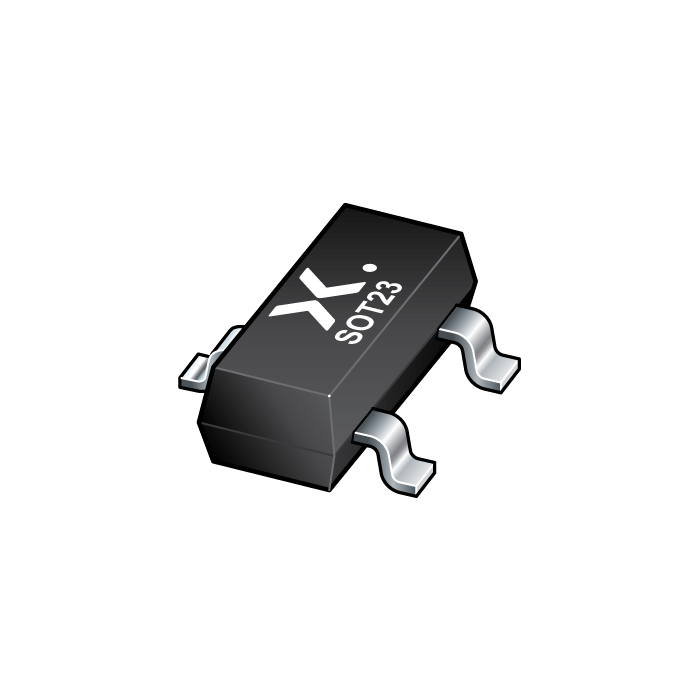

main product photo

The image is for reference only

Please refer to the product specifications

PDTD123YT
  • SKU:
    PDTD123YT,215
  • Short Description:
      50 V, 500 mA NPN resistor-equipped transistor; R1 = 2.2 kΩ, R2 = 10 kΩ
  • Description:


    NPN Resistor-Equipped Transistor (RET) in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.

    PNP complement: PDTB123YT

  • Datasheet:
    Download the Datasheet
Stock: 98799999
Qty:
Price: $3
Total: $3

Features

  • Built-in bias resistors

  • Simplifies circuit design

  • 500 mA output current capability

  • Reduces component count

  • Reduces pick and place costs

  • ± 10 % resistor ratio tolerance

Applications

  • Digital application in industrial segment

  • Controlling IC inputs

  • Cost-saving alternative to BC817 series in digital applications

  • Switching loads

Datasheet
Download the Datasheet
