PDTB113ZT

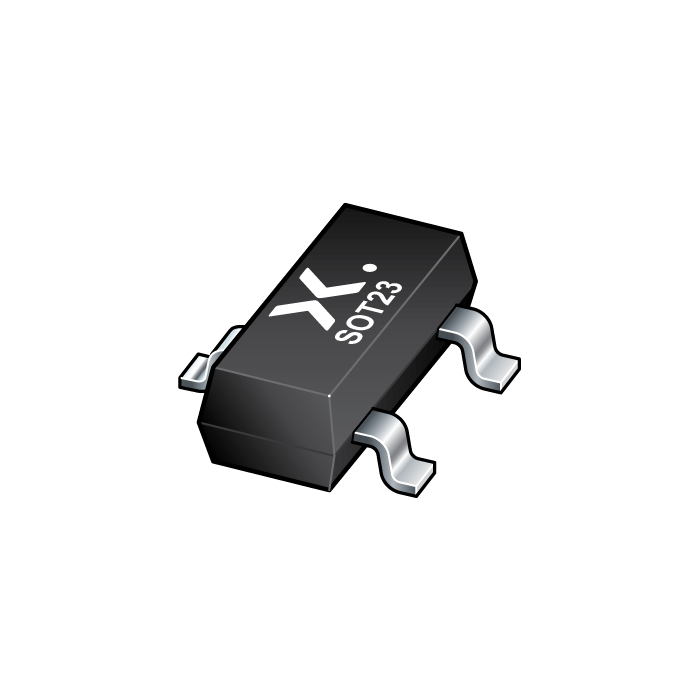

main product photo

The image is for reference only

Please refer to the product specifications

PDTB113ZT
  • SKU:
    PDTB113ZT,215
  • Short Description:
      PNP 500 mA, 50 V resistor-equipped transistor; R1 = 1 kΩ, R2 = 10 kΩ
  • Description:


    500 mA PNP Resistor-Equipped Transistor (RET) in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.

    NPN complement: PDTD113ZT.

  • Datasheet:
    Download the Datasheet
Stock: 1626000
Qty:
Price: $0.0223
Total: $0.0223
Price
Qty Price Total price
1 $0.0223 $0.0223
500 $0.0203 $10.1500
1000 $0.0193 $19.3000
3000 $0.0184 $55.2000

Features

  • 500 mA output current capability

  • Reduces pick and place costs

  • Built-in bias resistors

  • ±10 % resistor ratio tolerance

  • Simplifies circuit design

  • Reduces component count

  • AEC-Q101 qualified

Applications

  • Digital application in automotive and industrial segments

  • Cost-saving alternative for BC807 series in digital applications

  • Control of IC inputs

  • Switching loads

Datasheet
Download the Datasheet
