NHDTC114/124/144ET series
The image is for reference only
Please refer to the product specifications
NHDTC114/124/144ET series
-
SKU:
NHDTC124ETR
-
Date Code:
2519+
-
Short Description:
80 V, 100 mA NPN resistor-equipped transistors
-
Description:

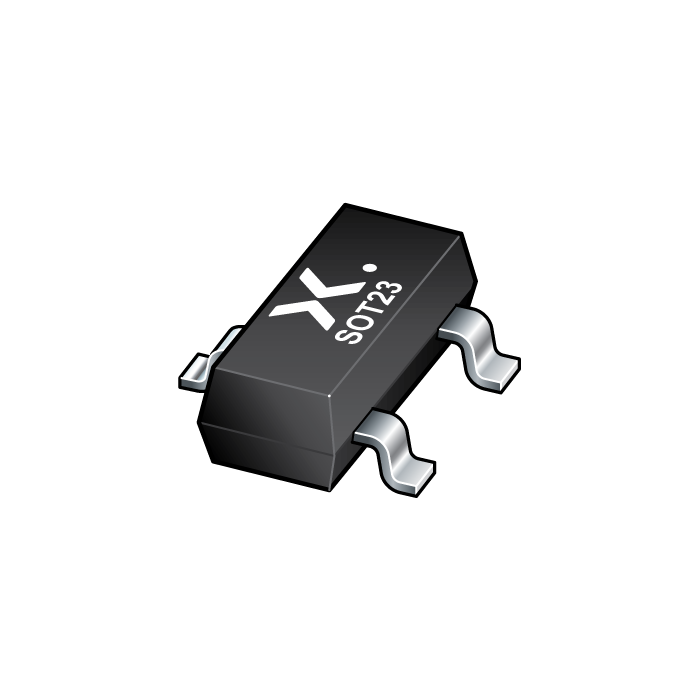

NPN Resistor-Equipped Transistor (RET) family in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.
Table 1. Product overview Type number
R1
R2
Package
PNP complement:
kΩ
kΩ
Nexperia
JEDEC
NHDTC114ET
10
10
SOT23
TO-236AB
NHDTA114ET
NHDTC124ET
22
22
NHDTA124ET
NHDTC144ET
47
47
NHDTA144ET
- Datasheet:
Stock: 99999999
Features
100 mA output current capability
High breakdown voltage
Built-in resistors
Simplifies circuit design
Reduces component count
Reduces pick and place costs
AEC-Q101 qualified
Applications
Digital applications
Cost saving alternative for BC846 series in digital applications
Controlling IC inputs
Switching loads
