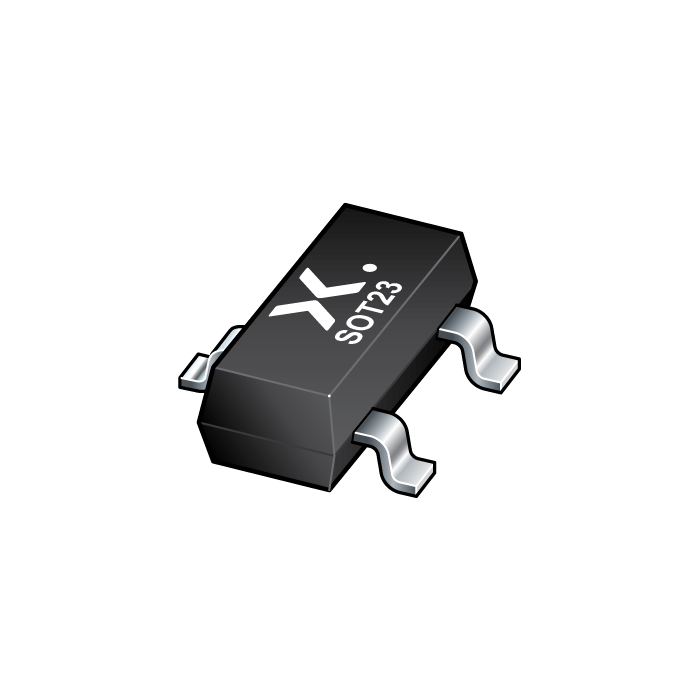

The image is for reference only
Please refer to the product specifications
-
SKU:
MMBZ16VTAL-QR
-
Short Description:
Q - High surge current unidirectional double ESD protection diodes
-
Description:
Unidirectional double ElectroStatic Discharge (ESD) protection diodes in a common anode configuration, encapsulated in a SOT23 (TO-236AB) small Surface-Mounted Device (SMD) plastic package. The device is designed for ESD and transient overvoltage protection of up to two signal lines.
- Datasheet:
Features
Unidirectional protection of two lines
Reverse standoff voltage: VRWM = 13 V
Average measured surge robustness: IPPM = 14 A (8/20 µs) / IPPM = 2.54 A (10/1000 µs)
Typical reverse leakage current: IRM = 0.1 nA
Tight breakdown voltage tolerance: ΔVBR +/- 2%
Qualified according to AEC-Q101 and recommended for use in automotive applications
Applications
Automotive in-vehicle networks protection
Industrial application
Power management
