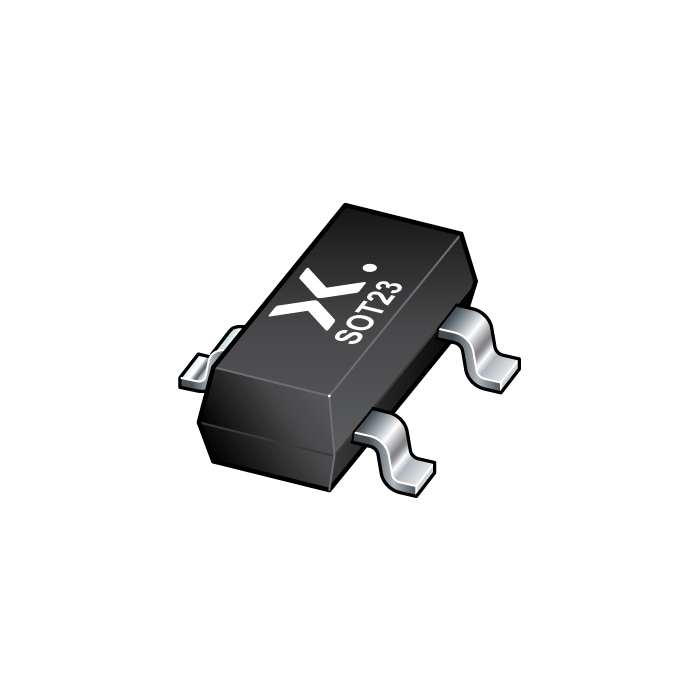

The image is for reference only
Please refer to the product specifications
-
SKU:
MMBZ12VAT-QR
-
Short Description:
Q - Low capacitance unidirectional double ESD protection diode
-
Description:
Unidirectional double ElectroStatic Discharge (ESD) protection diode in a common anode configuration, encapsulated in a SOT23 (TO-236AB) small Surface-Mounted Device (SMD) plastic package. The device is designed for ESD and transient overvoltage protection of up to two signal lines.
- Datasheet:
Features
Unidirectional ESD protection of two lines
Bidirectional ESD protection of one line
Very low diode capacitance: Cd ≤ 54 pF
Reverse stand-off voltage: VRWM = 8.5 V
Low clamping voltage: VCL = 20.7 V typ. at IPP = 7 A
ESD protection up to 30 kV (IEC 61000-4-2)
Ultra low leakage current: IRM < 1 nA
Qualified according to AEC-Q101 and recommended for use in automotive applications
Applications
Computers and peripherals
Audio and video equipment
Cellular handsets and accessories
Automotive electronic control units
Portable electronics
