MM5Z series

MM5Z series

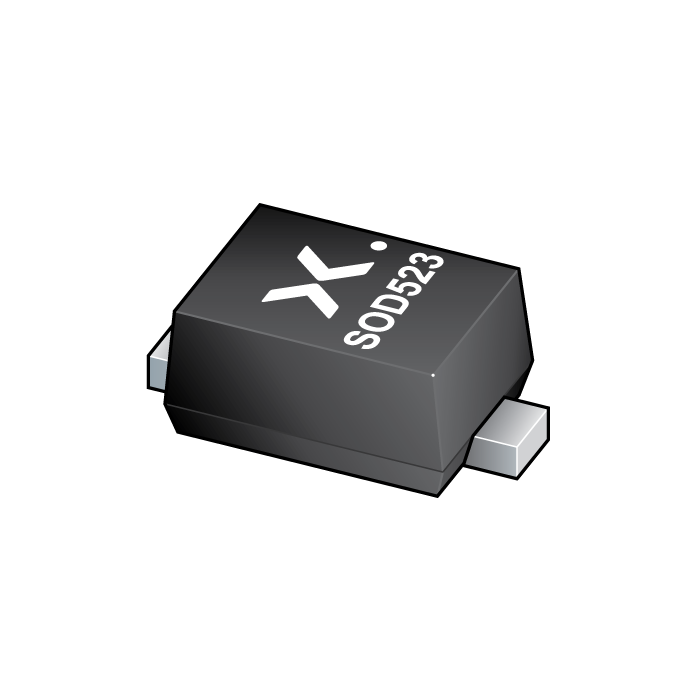

The image is for reference only

Please refer to the product specifications

MM5Z series

SKU:
MM5Z9V1T5GF
Short Description:
Voltage regulator diodes
Description:

General-purpose Zener diodes in an SOD523 (SC-79) ultra small flat lead Surface-Mounted Device (SMD) plastic package.
Datasheet:
Download the Datasheet

Stock: 18000

Qty:

Price: $0.0043

Total: $0.0043

Price

Qty Price Total price: 1 $0.0043 $0.0043; 500 $0.0039 $1.9500; 1000 $0.0037 $3.7000; 3000 $0.0035 $10.5000

Table 1. Quick reference data
Symbol	Parameter	Conditions		Min	Typ	Max	Unit
V_F	forward voltage	I_F = 100 mA	¹	-	-	1.1	V
P_ZSM	non-repetitive peak reverse power dissipation		²	-	-	40	W

¹ Pulse test: t _p ≤ 300 μs; δ ≤ 0.02

² t _p = 100 µs; square wave; T _j = 25 °C before surge
