MM5Z series

MM5Z series

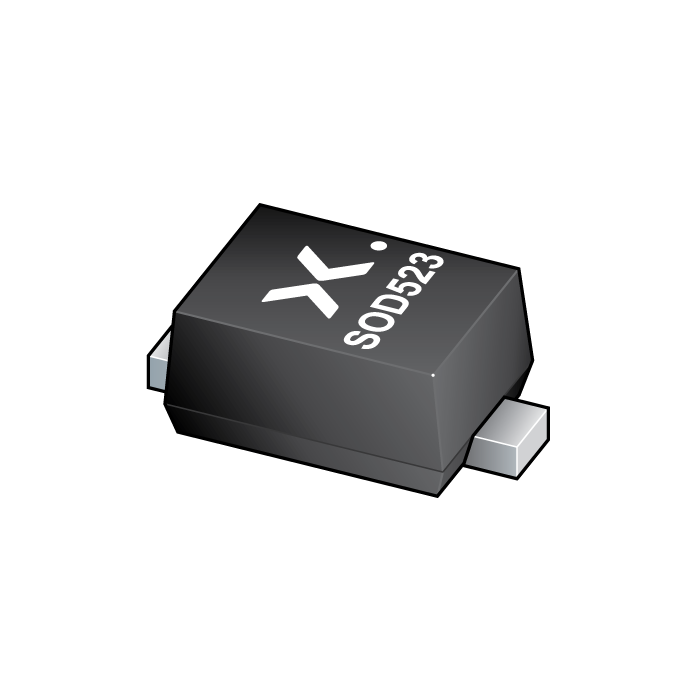

The image is for reference only

Please refer to the product specifications

MM5Z series

SKU:
MM5Z5V6T5GF
Short Description:
Voltage regulator diodes
Description:

General-purpose Zener diodes in an SOD523 (SC-79) ultra small flat lead Surface-Mounted Device (SMD) plastic package.
Datasheet:
Download the Datasheet

Stock: 6000

Qty:

Price: $0.0042

Total: $0.0042

Price

Qty Price Total price: 1 $0.0042 $0.0042; 500 $0.0038 $1.9000; 1000 $0.0036 $3.6000; 3000 $0.0034 $10.2000

Table 1. Quick reference data
Symbol	Parameter	Conditions		Min	Typ	Max	Unit
V_F	forward voltage	I_F = 100 mA	¹	-	-	1.1	V
P_ZSM	non-repetitive peak reverse power dissipation		²	-	-	40	W

¹ Pulse test: t _p ≤ 300 μs; δ ≤ 0.02

² t _p = 100 µs; square wave; T _j = 25 °C before surge
