BZX8850S

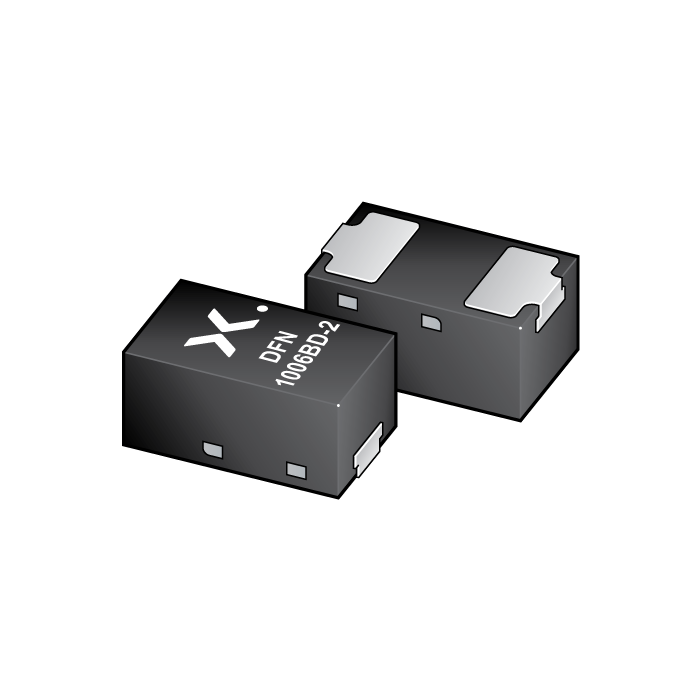

main product photo

The image is for reference only

Please refer to the product specifications

BZX8850S
  • SKU:
    BZX8850S-C4V3-QYL
  • Short Description:
      Q series - Low-current voltage regulator diodes
  • Description:


    Low-current voltage regulator diodes in an ultra small SOD882BD (DFN1006BD-2) leadless Surface-Mounted Device (SMD) plastic package with side-wettable flanks.

  • Datasheet:
    Download the Datasheet
Stock: 20000
Qty:
Price: $0.0047
Total: $0.0047
Price
Qty Price Total price
1 $0.0047 $0.0047
500 $0.0043 $2.1500
1000 $0.0041 $4.1000
3000 $0.0039 $11.7000

Features

  • Total power dissipation: ≤ 365 mW

  • Tolerance series: approximately ± 5 %

  • Working voltage range: nominal 1.8 V to 10 V

  • Specified at a low test current (50 μA), ideal for low bias and portable battery-powered applications

  • Qualified according to AEC-Q101 and recommended for use in automotive applications

Applications

  • Low-current general regulation functions

Datasheet
Download the Datasheet
