BZX58550

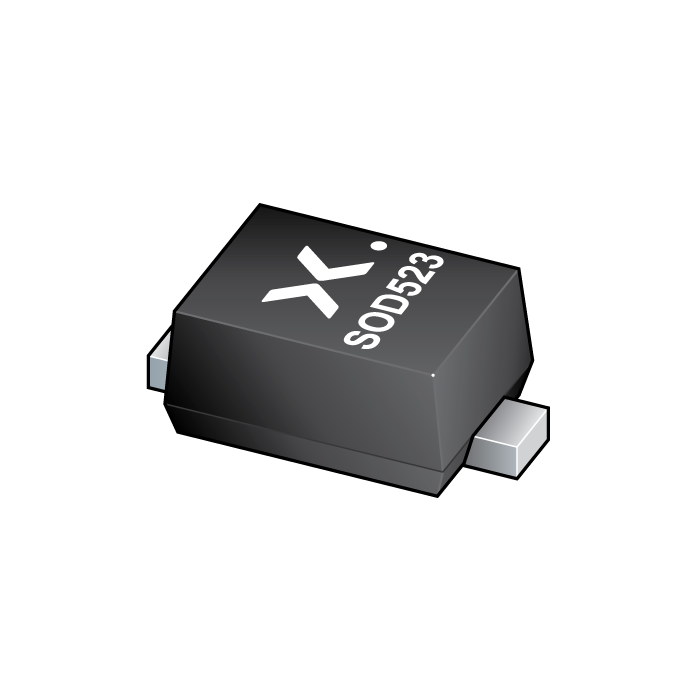

main product photo

The image is for reference only

Please refer to the product specifications

BZX58550
  • SKU:
    BZX58550-C6V2-QX
  • Short Description:
      Q series - Low-current voltage regulator diodes
  • Description:


    Low-current voltage regulator diodes in an SOD523 (SC-79) ultra small and flat lead Surface-Mounted Device (SMD) plastic package.

  • Datasheet:
    Download the Datasheet
Stock: 15000
Qty:
Price: $0.0041
Total: $0.0041
Price
Qty Price Total price
1 $0.0041 $0.0041
500 $0.0037 $1.8500
1000 $0.0035 $3.5000
3000 $0.0034 $10.2000

Features

  • Total power dissipation: ≤ 300 mW

  • Tolerance series: approximately ± 5 %

  • Working voltage range: nominal 1.8 V to 75 V

  • Specified at a low test current (50 μA), ideal for low bias and portable battery-powered applications

  • Qualified according to AEC-Q101 and recommended for use in automotive applications

Applications

  • Low-current general regulation functions

Datasheet
Download the Datasheet
