BZX585 series

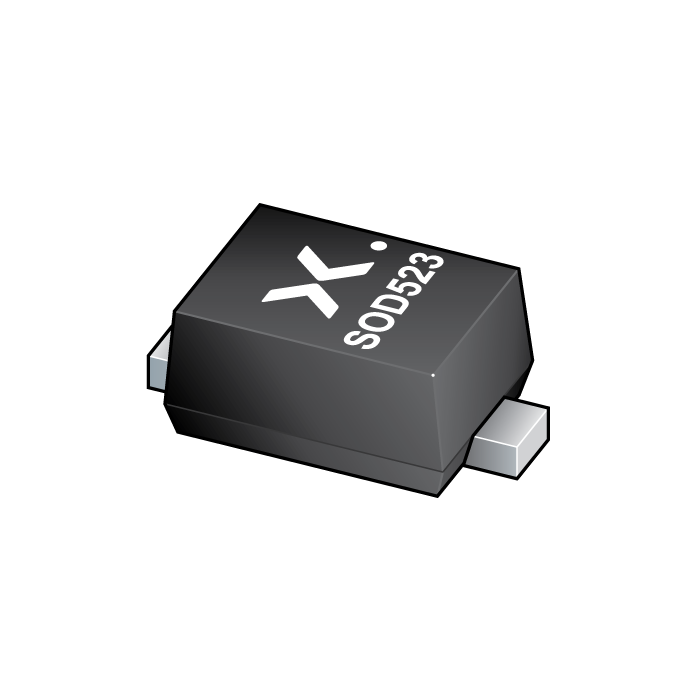

The image is for reference only
Please refer to the product specifications
BZX585 series
-
SKU:
BZX585-C47,115
-
Short Description:
Voltage regulator diodes
-
Description:
Low-power voltage regulator diodes encapsulated in an ultra small SOD523 plastic SMD package.
The diodes are available in the normalized E24 +- 2 pct (BZX585-B) and +- 5 pct (BZX585-C) tolerance range.
The series consists of 37 types with nominal working voltages from 2.4 V to 75 V.
- Datasheet:
Stock: 180000
Features
- Total power dissipation: max. 300 mW
- Two tolerance series: +- 2 pct and +- 5 pct
- Working voltage range: nominal 2.4 V to 75 V (E24 range)
- Non-repetitive peak reverse power dissipation: max. 40 W.
- AEC-Q101 qualified
Applications
- General regulation functions.
