BZV55 series

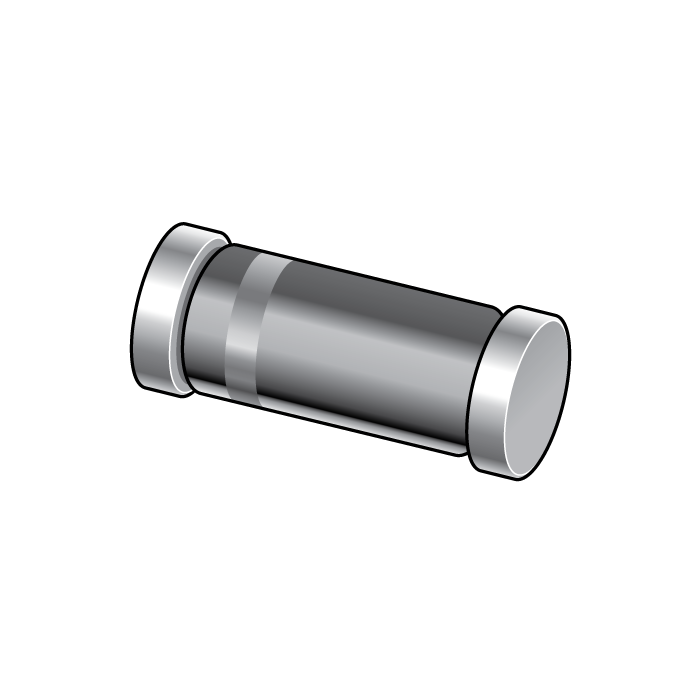

The image is for reference only
Please refer to the product specifications
BZV55 series
-
SKU:
BZV55-B12,115
-
Date Code:
2346+
-
Short Description:
Voltage regulator diodes
-
Description:
Low-power voltage regulator diodes in small hermetically sealed glass SOD80C Surface-Mounted Device (SMD) packages. The diodes are available in the normalized E24 ±2 % (BZV55-B) and approximately ±5 % (BZV55-C) tolerance range. The series consists of 37 types with nominal working voltages from 2.4 V to 75 V.
- Datasheet:
Stock: 99999999
Features
Non-repetitive peak reverse power dissipation: ≤ 40 W
Total power dissipation: ≤ 500 mW
Two tolerance series: ±2 % and ±5 %
Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
Low differential resistance
Small hermetically sealed glass SMD package
Applications
General regulation functions
