BUK9Y59

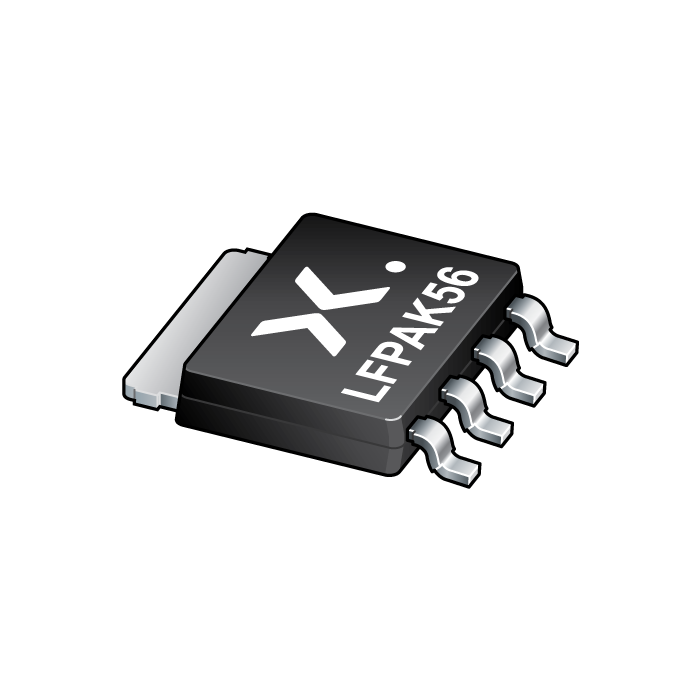

The image is for reference only
Please refer to the product specifications
BUK9Y59
-
SKU:
BUK9Y59-60E,115
-
Date Code:
2350+
-
Short Description:
60E - N-channel 60 V, 59 mΩ logic level MOSFET in LFPAK56
-
Description:
Logic level N-channel MOSFET in an LFPAK56 (Power SO8) package using TrenchMOS technology. This product has been designed and qualified to AEC Q101 standard for use in high performance automotive applications.
- Datasheet:
Stock: 10422000
Features
Q101 compliant
Repetitive avalanche rated
Suitable for thermally demanding environments due to 175 °C rating
True logic level gate with VGS(th) rating of greater than 0.5 V at 175 °C
Applications
12 V Automotive systems
Motors, lamps and solenoid control
Transmission control
Ultra high performance power switching
