BUK9Y21

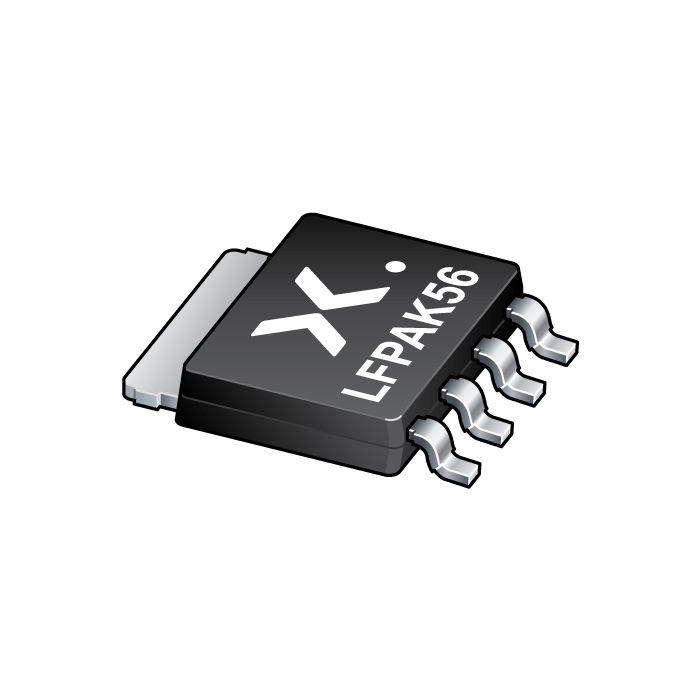

main product photo

The image is for reference only

Please refer to the product specifications

BUK9Y21
  • SKU:
    BUK9Y21-40E,115
  • Short Description:
      40E - N-channel 40 V, 21 mΩ logic level MOSFET in LFPAK56
  • Description:


    Logic level N-channel MOSFET in an LFPAK56 (Power SO8) package using TrenchMOS technology. This product has been designed and qualified to AEC Q101 standard for use in high performance automotive applications.

  • Datasheet:
    Download the Datasheet
Stock: 99999999
Qty:
Price: $0.2
Total: $0.2
Price
Qty Price Total price
1 $0.2 $0.2
500 $0.1818 $90.9000
1000 $0.1731 $173.1000
3000 $0.1649 $494.7000

Features

  • Q101 compliant

  • Repetitive avalanche rated

  • Suitable for thermally demanding environments due to 175 °C rating

  • True logic level gate with VGS(th) rating of greater than 0.5 V at 175 °C

Applications

  • 12 V Automotive systems

  • Motors, lamps and solenoid control

  • Transmission control

  • Ultra high performance power switching

Datasheet
Download the Datasheet
