BUK9K52

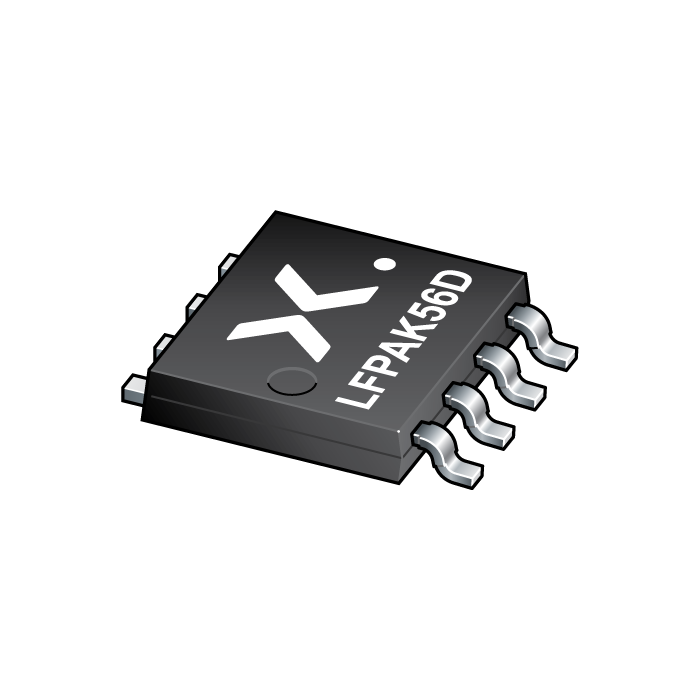

main product photo

The image is for reference only

Please refer to the product specifications

BUK9K52
  • SKU:
    BUK9K52-60E,115
  • Short Description:
      60E - Dual N-channel 60 V, 55 mΩ logic level MOSFET
  • Description:


    Dual logic level N-channel MOSFET in an LFPAK56D (Dual Power-SO8) package using TrenchMOS technology. This product has been designed and qualified to AEC-Q101 standard for use in high performance automotive applications.

  • Datasheet:
    Download the Datasheet
Stock: 3100500
Qty:
Price: $0.1874
Total: $0.1874
Price
Qty Price Total price
1 $0.1874 $0.1874
500 $0.1704 $85.2000
1000 $0.1623 $162.3000
3000 $0.1546 $463.8000

Features

  • Dual MOSFET

  • AEC-Q101 compliant

  • Repetitive avalanche rated

  • Suitable for thermally demanding environments due to 175 °C rating

  • True logic level gate with VGS(th) rating of greater than 0.5 V at 175 °C

Applications

  • 12 V automotive systems

  • Motors, lamps and solenoid control

  • Transmission control

  • Ultra high performance power switching

Datasheet
Download the Datasheet
