BUK9K

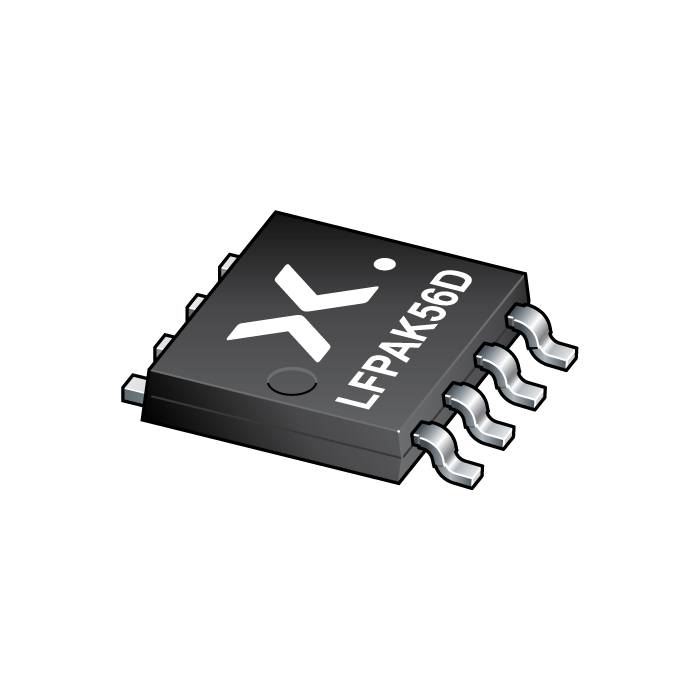

The image is for reference only
Please refer to the product specifications
BUK9K
-
SKU:
BUK9K45-100E,115
-
Date Code:
2351+
-
Short Description:
Dual N-channel TrenchMOS logic level FET
-
Description:
Dual logic level N-channel MOSFET in an LFPAK56D (Dual Power-SO8) package using TrenchMOS technology. This product has been designed and qualified to AEC Q101 standard for use in high performance automotive applications.
- Datasheet:
Stock: 273000
Features
Dual MOSFET
Q101 Compliant
Repetitive avalanche rated
Suitable for thermally demanding environments due to 175 °C rating
True logic level gate with VGS(th) rating of greater than 0.5 V at 175 °C
Applications
12 V Automotive systems
Motors, lamps and solenoid control
Transmission control
Ultra high performance power switching
Datasheet
