BUK9K18
The image is for reference only
Please refer to the product specifications
BUK9K18
-
SKU:
BUK9K18-40E,115
-
Date Code:
2350+
-
Short Description:
40E - Dual N-channel 40 V, 19.5 mΩ logic level MOSFET
-
Description:

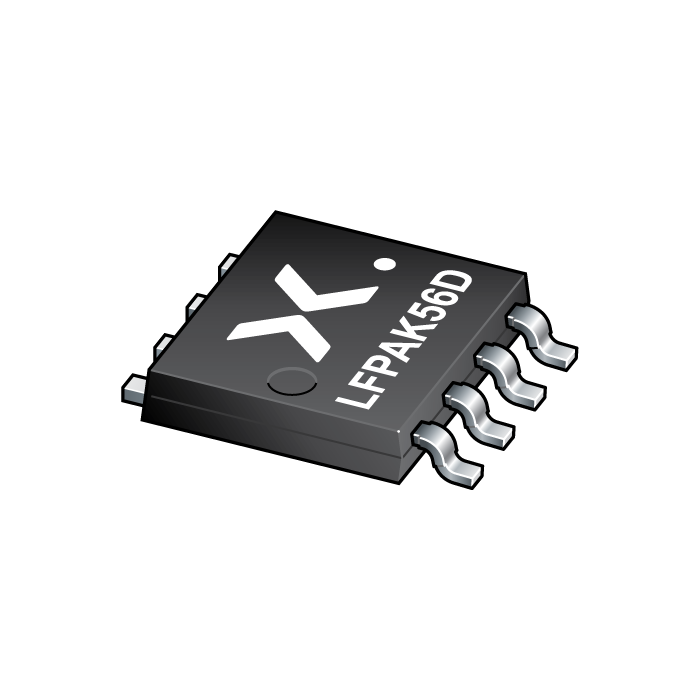

Dual logic level N-channel MOSFET in an LFPAK56D (Dual Power-SO8) package using TrenchMOS technology. This product has been designed and qualified to AEC-Q101 standard for use in high performance automotive applications.
- Datasheet:
Stock: 628500
Features
Dual MOSFET
Q101 Compliant
Repetitive avalanche rated
Suitable for thermally demanding environments due to 175 °C rating
True logic level gate with VGS(th) rating of greater than 0.5 V at 175 °C
Applications
12 V Automotive systems
Motors, lamps and solenoid control
Transmission control
Ultra high performance power switching
Datasheet
