BUK9K13

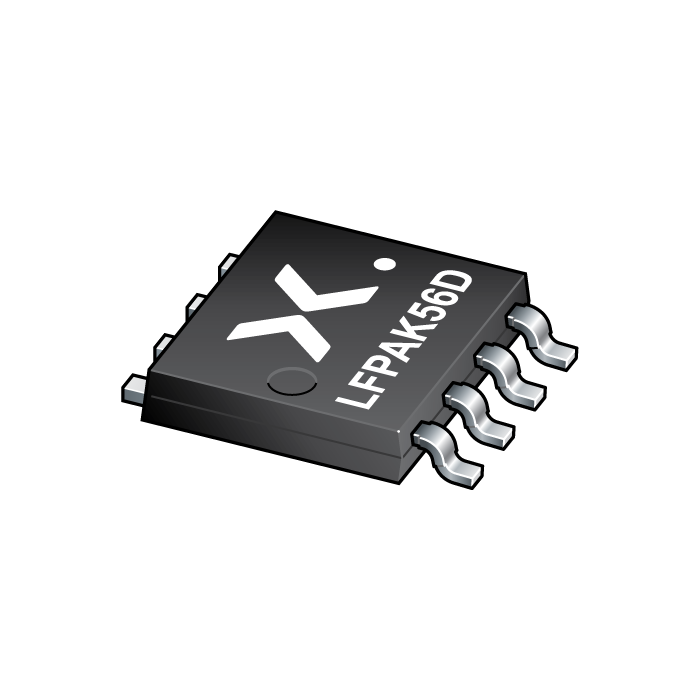

main product photo

The image is for reference only

Please refer to the product specifications

BUK9K13
  • SKU:
    BUK9K13-60EX
  • Short Description:
      60E - Dual N-channel 60 V, 12.5 mΩ logic level MOSFET
  • Description:


    Dual logic level N-channel MOSFET in an LFPAK56D (Dual Power-SO8) package using TrenchMOS technology. This product has been designed and qualified to AEC Q101 standard for use in high performance automotive applications.

  • Datasheet:
    Download the Datasheet
Stock: 99971498
Qty:
Price: $0.5174
Total: $0.5174
Price
Qty Price Total price
1 $0.5174 $0.5174
500 $0.4704 $235.2000
1000 $0.448 $448.0000
3000 $0.4267 $1,280.1000

Features

  • Dual MOSFET

  • Q101 Compliant

  • Repetitive avalanche rated

  • Suitable for thermally demanding environments due to 175 °C rating

  • True logic level gate with VGS(th) rating of greater than 0.5 V at 175 °C

Applications

  • 12 V Automotive systems

  • Motors, lamps and solenoid control

  • Transmission control

  • Ultra high performance power switching

Datasheet
Download the Datasheet
