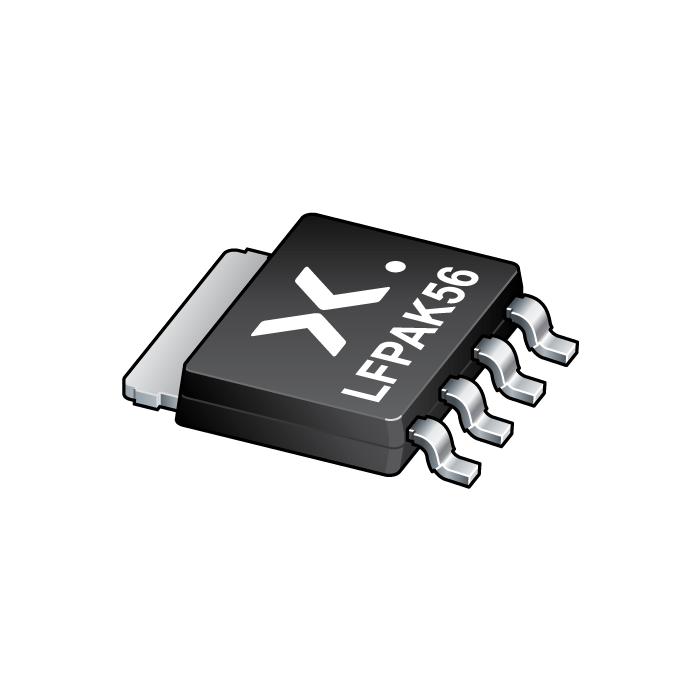

The image is for reference only
Please refer to the product specifications
-
SKU:
BUK7Y1R7-40HX
-
Date Code:
2352+
-
Short Description:
40H - N-channel 40 V, 1.7 mΩ standard level MOSFET in LFPAK56
-
Description:
Automotive qualified N-channel MOSFET using the latest Trench 9 low ohmic superjunction technology, housed in a robust LFPAK56 package. This product has been fully designed and qualified to meet AEC-Q101 requirements delivering high performance and endurance.
- Datasheet:
Features
- Fully automotive qualified to AEC-Q101:
175 °C rating suitable for thermally demanding environments
- Trench 9 Superjunction technology:
Reduced cell pitch enables enhanced power density and efficiency with lower RDSon in same footprint
Improved SOA and avalanche capability compared to standard TrenchMOS
Tight VGS(th) limits enable easy paralleling of MOSFETs
- LFPAK Gull Wing leads:
High Board Level Reliability absorbing mechanical stress during thermal cycling, unlike traditional QFN packages
Visual (AOI) soldering inspection, no need for expensive x-ray equipment
Easy solder wetting for good mechanical solder joint
- LFPAK copper clip technology:
Improved reliability, with reduced Rth and RDSon
Increases maximum current capability and improved current spreading
Applications
12 V automotive systems
Motors, lamps and solenoid control
Start-Stop micro-hybrid applications
Transmission control
Ultra high performance power switching
