BUK7Y1R4

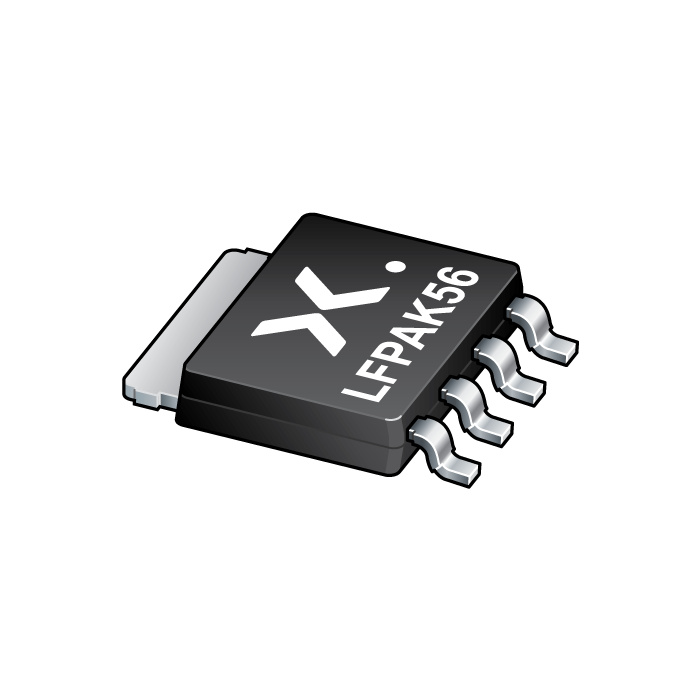

The image is for reference only
Please refer to the product specifications
BUK7Y1R4
-
SKU:
BUK7Y1R4-40HX
-
Short Description:
40H - N-channel 40 V, 1.4 mΩ standard level MOSFET in LFPAK56
-
Description:
Automotive qualified N-channel MOSFET using the latest Trench 9 low ohmic superjunction technology, housed in a robust LFPAK56 package. This product has been fully designed and qualified to meet AEC-Q101 requirements delivering high performance and endurance.
- Datasheet:
Stock: 7579500
Features
- Fully automotive qualified to AEC-Q101:
- 175 °C rating suitable for thermally demanding environments
- Trench 9 Superjunction technology:
- Reduced cell pitch enables enhanced power density and efficiency with lower RDSon in same footprint
- Improved SOA and avalanche capability compared to standard TrenchMOS
- Tight VGS(th) limits enable easy paralleling of MOSFETs
- LFPAK Gull Wing leads:
- High Board Level Reliability absorbing mechanical stress during thermal cycling, unlike traditional QFN packages
- Visual (AOI) soldering inspection, no need for expensive x-ray equipment
- Easy solder wetting for good mechanical solder joint
- LFPAK copper clip technology:
- Improved reliability, with reduced Rth and RDSon
- Increases maximum current capability and improved current spreading
Applications
12 V automotive systems
Motors, lamps and solenoid control
Start-Stop micro-hybrid applications
Transmission control
Ultra high performance power switching
