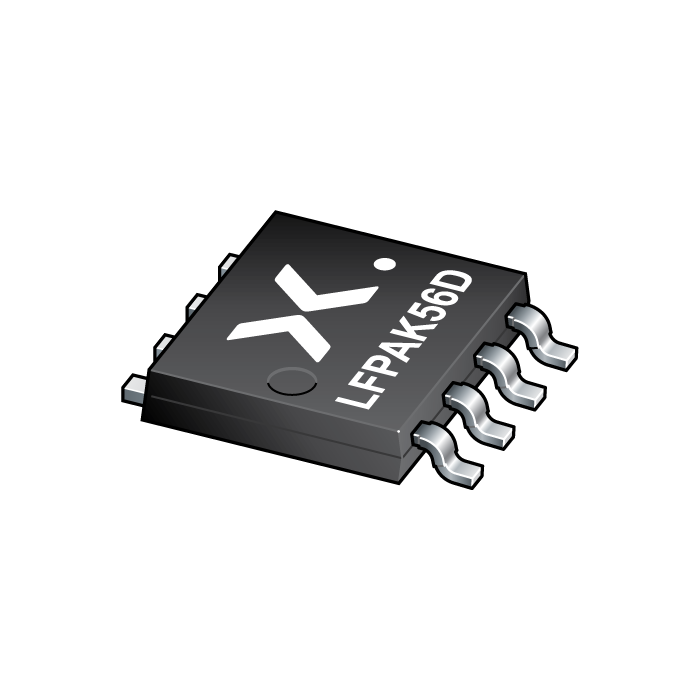

BUK7K6R8
The image is for reference only
Please refer to the product specifications
BUK7K6R8
-
SKU:
BUK7K6R8-40E,115
-
Date Code:
2352+
-
Short Description:
40E - Dual N-channel 40 V, 6.8 mΩ standard level MOSFET
-
Description:
Dual standard level N-channel MOSFET in an LFPAK56D (Dual Power-SO8) package using TrenchMOS technology. This product has been designed and qualified to AEC Q101 standard for use in high performance automotive applications.
- Datasheet:
Stock: 342000
Features
Dual MOSFET
Q101 compliant
Repetitive avalanche rated
Suitable for thermally demanding environments due to 175 °C rating
True standard level gate with VGS(th) of greater than 1 V at 175 °C
Applications
12 V Automotive systems
Motors, lamps and solenoid control
Transmission control
Ultra high performance power switching
