vp_BAV99W

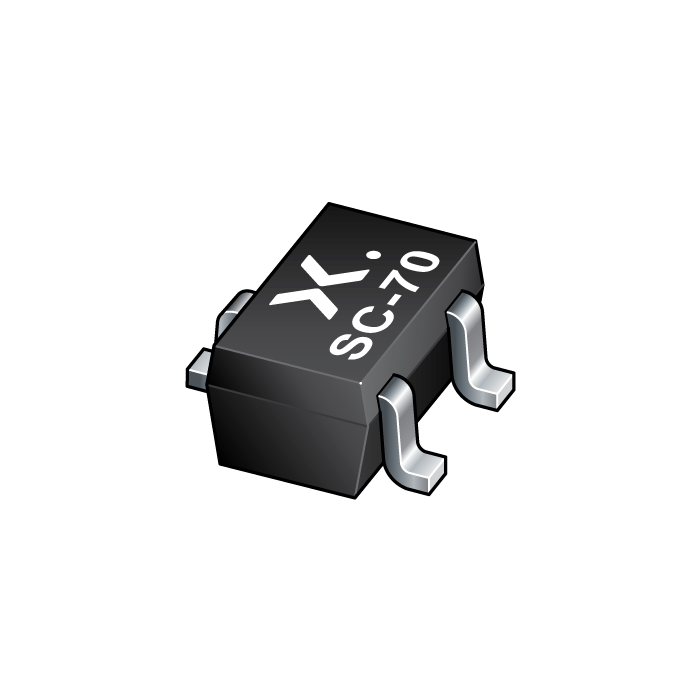

main product photo

The image is for reference only

Please refer to the product specifications

vp_BAV99W
  • SKU:
    BAV99W,115
  • Date Code:
    2437+
  • Short Description:
      High-speed switching diode
  • Description:


    High-speed switching diode, encapsulated in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package.

  • Datasheet:
    Download the Datasheet
Stock: 73875999
Qty:
Price: $0.011
Total: $0.011
Price
Qty Price Total price
1 $0.011 $0.011
500 $0.001 $0.5000

Features

  • High switching speed: trr ≤ 4 ns

  • Low capacitance: Cd ≤ 1.5 pF

  • Low leakage current

  • Reverse voltage: VR ≤ 100 V

  • Very small SMD plastic packages

Applications

  • High-speed switching

  • Reverse polarity protection

  • General-purpose switching

Datasheet
Download the Datasheet
