BAV70W

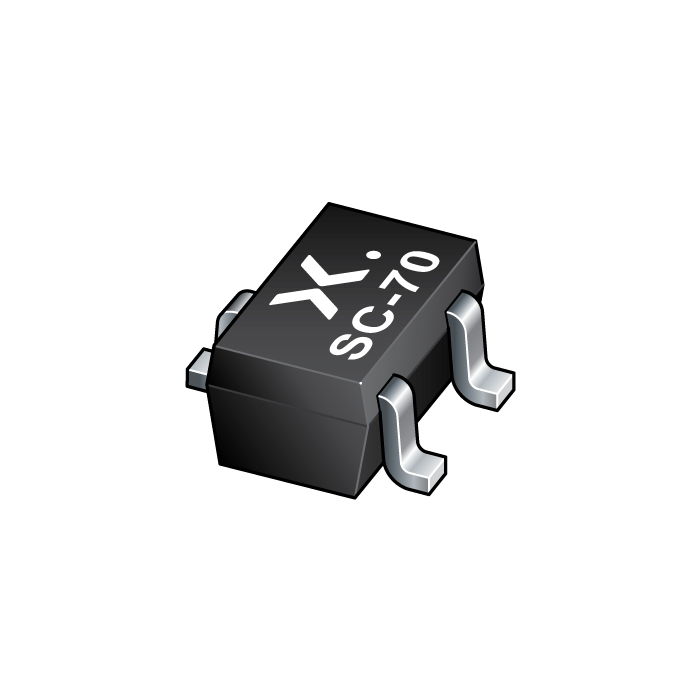

main product photo

The image is for reference only

Please refer to the product specifications

BAV70W
  • SKU:
    BAV70W-QX
  • Short Description:
      Q - High-speed switching double diode
  • Description:


    High-speed switching double diode, encapsulated in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package.

  • Datasheet:
    Download the Datasheet
Stock: 98298999
Qty:
Price: $0.0137
Total: $0.0137
Price
Qty Price Total price
1 $0.0137 $0.0137
500 $0.0124 $6.2000
1000 $0.0118 $11.8000
3000 $0.0113 $33.9000

Features

  • High switching speed: trr ≤ 4 ns

  • Low capacitance: Cd ≤ 1.5 pF

  • Low leakage current

  • Reverse voltage: VR ≤ 100 V

  • Very small SMD plastic package

  • Qualified according to AEC-Q101 and recommended for use in automotive applications

Applications

  • High-speed switching

  • General-purpose switching

Datasheet
Download the Datasheet
