BAV70W

JavaScript seems to be disabled in your browser. For the best experience on our site, be sure to turn on Javascript in your browser.

BOM New Arrivals Specials Automotive

Skip to the end of the images gallery

BAV70W

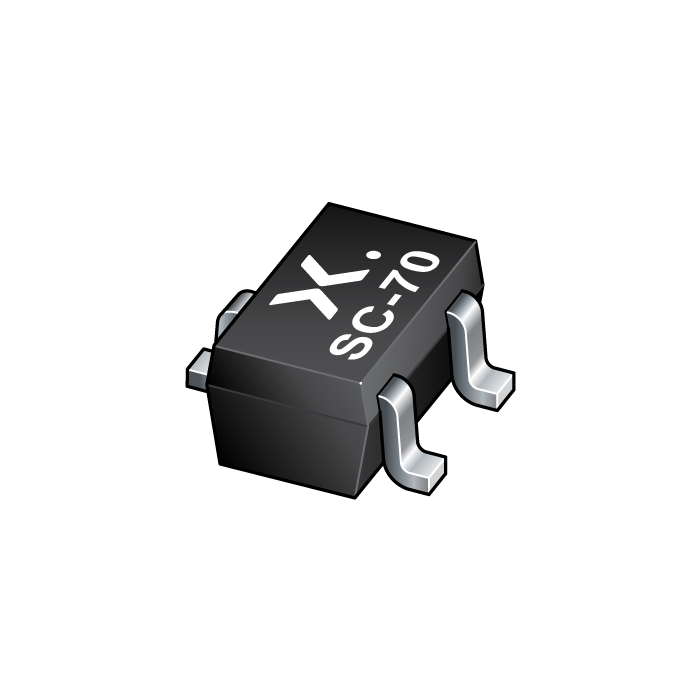

main product photo

The image is for reference only

Please refer to the product specifications

BAV70W

SKU:
BAV70W,115
Date Code:
2505+
Short Description:
High-speed switching double diode
Description:

High-speed switching double diode, encapsulated in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package.
Datasheet:
Download the Datasheet

Skip to the beginning of the images gallery

Stock: 93141999

Qty:

Price: $0.011

Total: $0.011

Price

Qty Price Total price: 1 $0.011 $0.011; 500 $0.01 $5.0000; 1000 $0.0095 $9.5000; 3000 $0.0091 $27.3000

Features

High switching speed: t_rr ≤ 4 ns
Low capacitance: C_d ≤ 1.5 pF
Low leakage current
Reverse voltage: V_R ≤ 100 V
Very small SMD plastic package

Applications

High-speed switching
General-purpose switching

Datasheet

Download the Datasheet
