BAS316

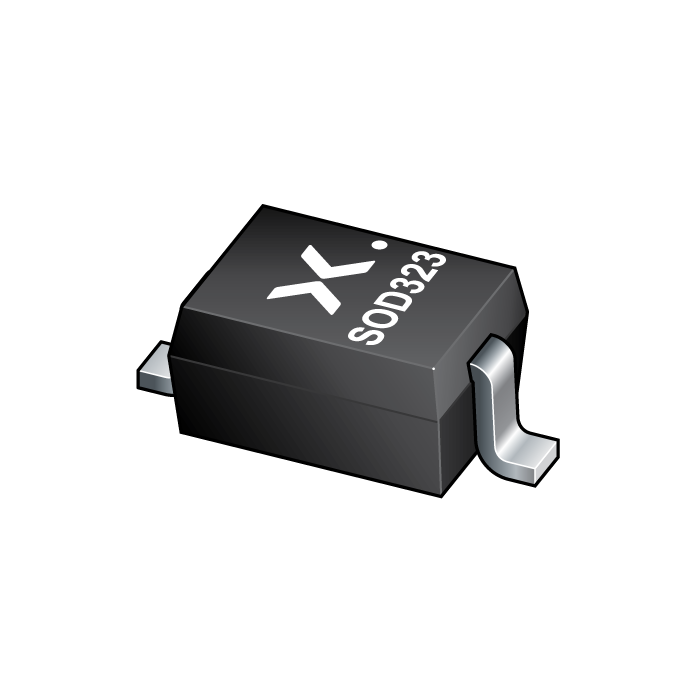

main product photo

The image is for reference only

Please refer to the product specifications

BAS316

SKU:
BAS316-QF
Date Code:
2351+
Short Description:
Q - High-speed switching diode
Description:

High-speed switching diode, encapsulated in a small SOD323 (SC-76) Surface-Mounted Device (SMD) plastic package.
Datasheet:
Download the Datasheet

Skip to the beginning of the images gallery

Stock: 0

Qty:

Price: $0.01

Total: $0.01

Price

Qty Price Total price: 1 $0.01 $0.01; 500 $0.0091 $4.5500; 1000 $0.0087 $8.7000; 3000 $0.0083 $24.9000

Features

High switching speed: t_rr ≤ 4 ns
Low capacitance
Low leakage current
Reverse voltage: V_R ≤ 100 V
Repetitive peak reverse voltage: V_RRM ≤ 100 V
Qualified according to AEC-Q101 and recommended for use in automotive applications

Applications

High-speed switching
General-purpose switching

Datasheet

Download the Datasheet
