2N7002BK

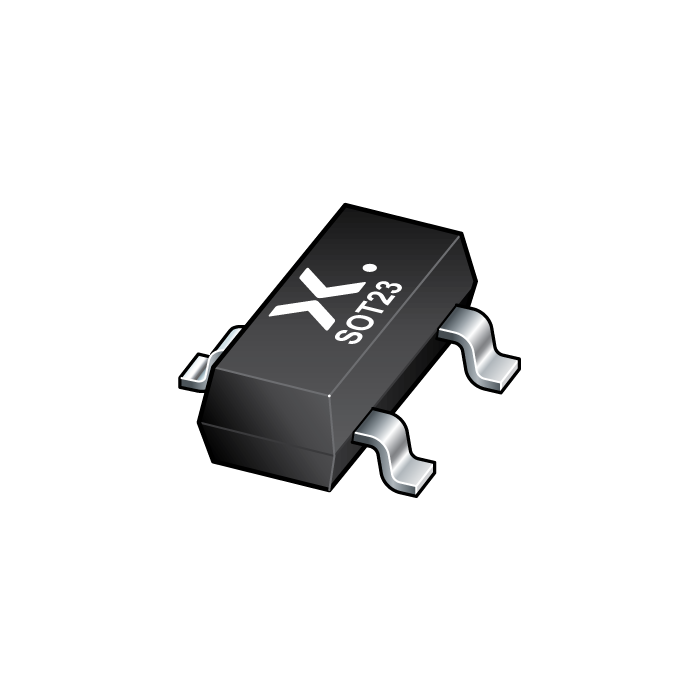

main product photo

The image is for reference only

Please refer to the product specifications

2N7002BK
  • SKU:
    2N7002BKVL
  • Short Description:
      channel Trench MOSFET
  • Description:


    N-channel enhancement mode Field-Effect Transistor (FET) in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) package using Trench MOSFET technology.

  • Datasheet:
    Download the Datasheet
Stock: 98906999
Qty:
Price: $0.0167
Total: $0.0167
Price
Qty Price Total price
1 $0.0167 $0.0167
500 $0.0152 $7.6000
1000 $0.0145 $14.5000
3000 $0.0138 $41.4000

Features

  • Logic-level compatible

  • Very fast switching

  • Trench MOSFET technology

  • ESD protection up to 2 kV

  • AEC-Q101 qualified

Applications

  • Relay driver

  • High-speed line driver

  • Low-side load switch

  • Switching circuits

Datasheet
Download the Datasheet
